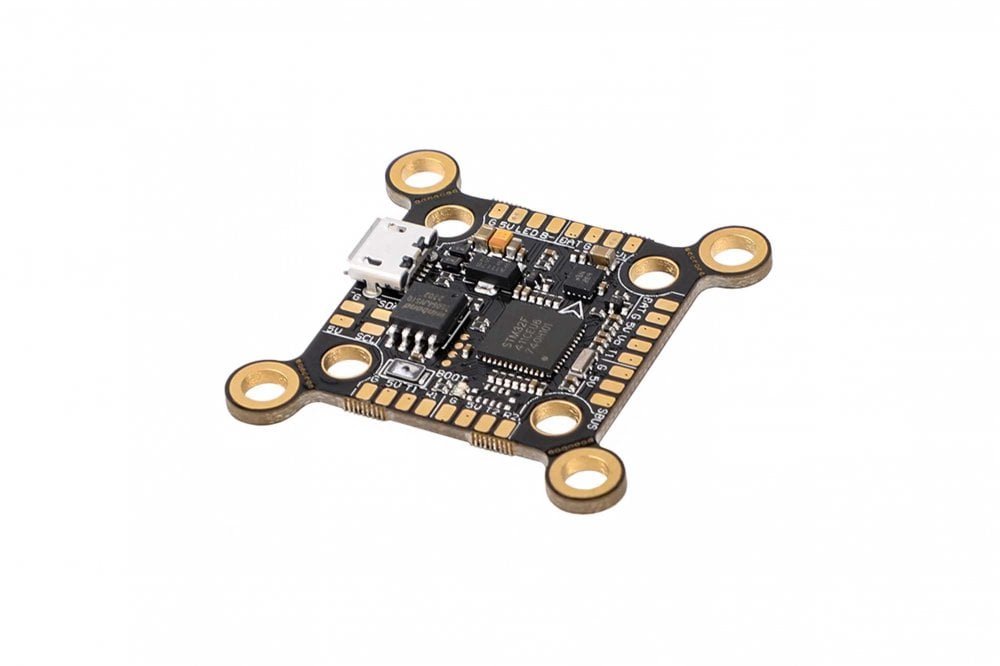

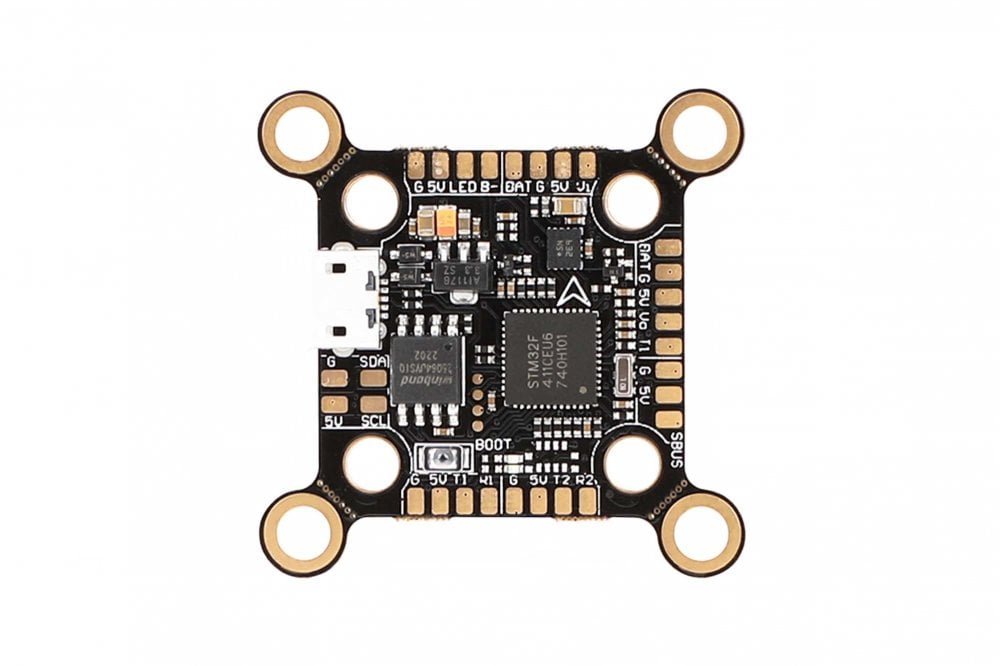

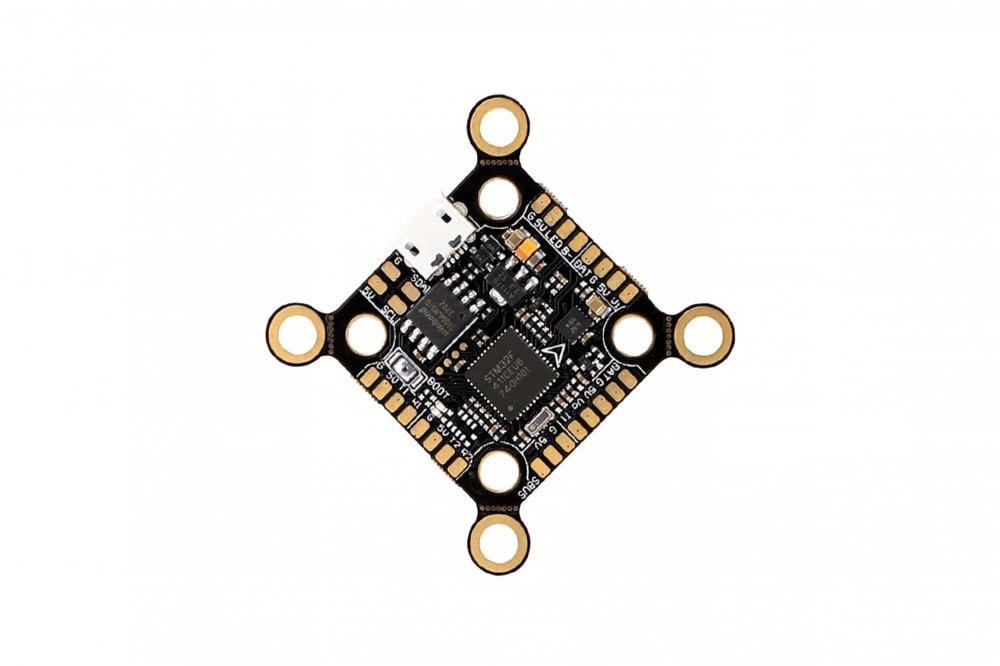

T-MOTOR - Velox F411 Lite

The T-Motor Velox F411 Lite is a budget friendly flight controller with excellent performance. The F411 Lite includes a 5V 2A BEC, Analogue OSD chip and 8Mbit on board black box logging. The design is well thought out and includes both 20x20mm mounting holes and removeable 30.5x30.5mm mounting holes, making it suitable for small and large quads. The F411 Lite includes 2 hardware uarts and 1 soft serial uart for connection to peripherals.

Specification:

• MCU: STM32F411

• Gyro: BMI270

• Memory: 8M

• Input Voltage: 12v-25.2v (3-6S)

• BEC: 5V/2A

• Mounting Holes: 30.5mm x 30.5mm (Detachable), 20mm x 20mm

Package contains:

• T-Motor Velox F411 Lite Flight Controller

• Rubber Mounting Grommets

• FC to ESC Cable
