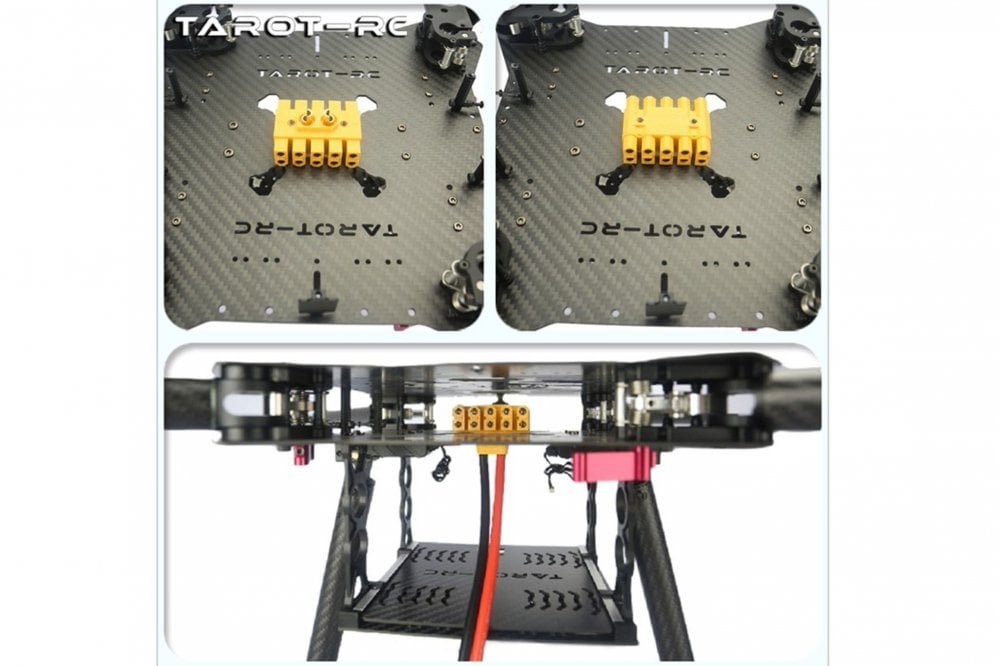

Tarot - Distribution Module/Power Hub/Compatible with XT60

Code: Tarot-D-03-05-TL60-10

Tarot Power Distribution Module/Power Hub/Purple Copper Gold Plated High Current/Compatible with XT60, TL60-10

Package contains:

• 1 x One-out-ten power distribution modulesTL60-10(42.5g)

• 1 x 90 series sheath(0.8g)

• 2 x Half round head screws(M3*5mm)

Product Description:

• One-out-ten power distribution modules from Tarot

• Specially developed for medium and large RC models, supporting any type of RC models within 10 channels of line output

• The shell adopts the injection molding integrated design

• The internal wiring is made of solid copper(gold-plated surface)with a one-piece structure, and the current resistance can reach 200A

Note: Due to the internal solid all-copper build,will cause serious heat absorption, it is recommended to use 100W soldering iron soldering main power!

Product Features:

1.Internal wiring(positive/negative)each way using solid copper one-piece structure.

2.Goldplated plug contact surface design.

3.Shellpressure molding injection molding design,beautiful and upscale.

4.Noheat-shrinkable tube,sheath one-step installation in place,saving time and effort.

5.Flat welding port with a sheath with a barrier layer,both to prevent short circuit and facilitate welding.

6.UL94V-0 flame retardant grade,the safety factor is greatly enhanced.

7.Current resistance up to 200A.

8.Seamlessly compatible with XT60 docking male connector.
