Team Black Sheep TBS Unify Pro32 HV (MMCX)

Code: TBS-04-03-Unify-Pro32-HV-(MMCX)

With theTBS UNIFY PRO32 HV (MMCX)we have boosted the output power, improved the robustness, decreased the power consumption, added capability for insane features and perfected the way it is installed in your RC model. In a nutshell, it’s the most comprehensive, future proof, highest quality and overall best HV VTx ever made.

Features:

• Double-decker design for insane cooling and durability

• 1000mW output power

• Ultra-clean transmission (up to 16 pilots at once!)

• PitMode - power up your quad during a race. Now with team-race capability!

• Easy OSD, FC and RC channel changes, with fallback button menu

• Robust RF amplifier allows powering up without antenna for hours!

• Clean powerup and video switching

• CE certified

Specifications

• Operating Voltage: 6V - 25V (2 - 6S)

• Operating Temperature: watch for normal airflow

• Video Input Impedance: 75 Ohm

• Weight: 8.7g

• Dimensions: 37 x 25 x 5.8mm

• Antenna Connector: MMCX

• Video Format: NTSC/PAL

• Output Power: 14dBm (25mW), 20dBm (100mW), 26dBm (400mW), 30dBm+ (1000mW+)

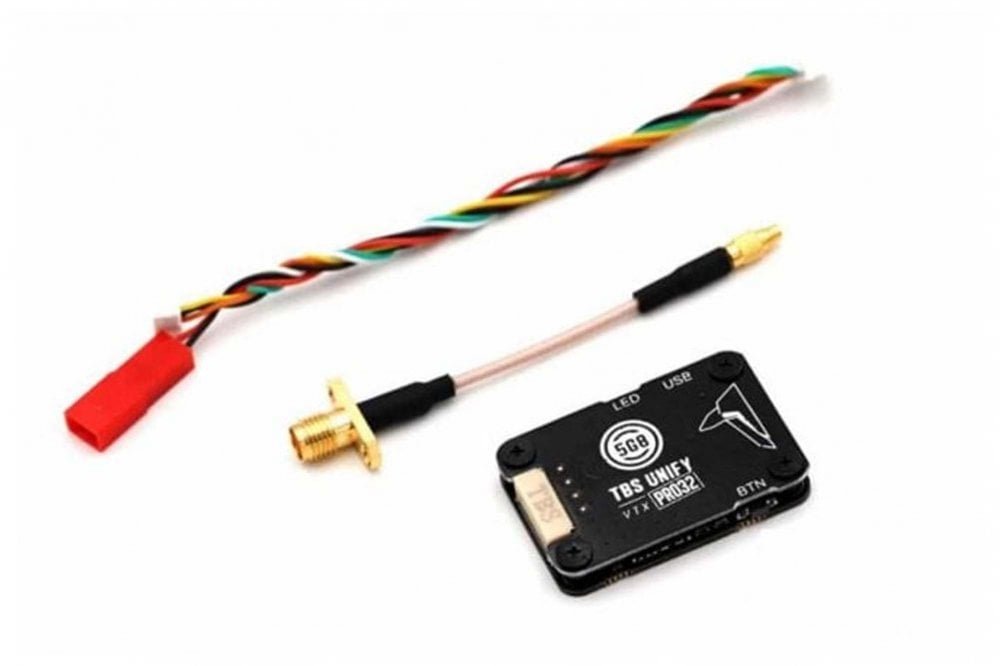

Package contains:

• 1x TBS UNIFY PRO32 5G8 HV Video transmitter

• 1x Silicone cable (ends pre-tinned)

• 1x MMCX to SMA pigtail
