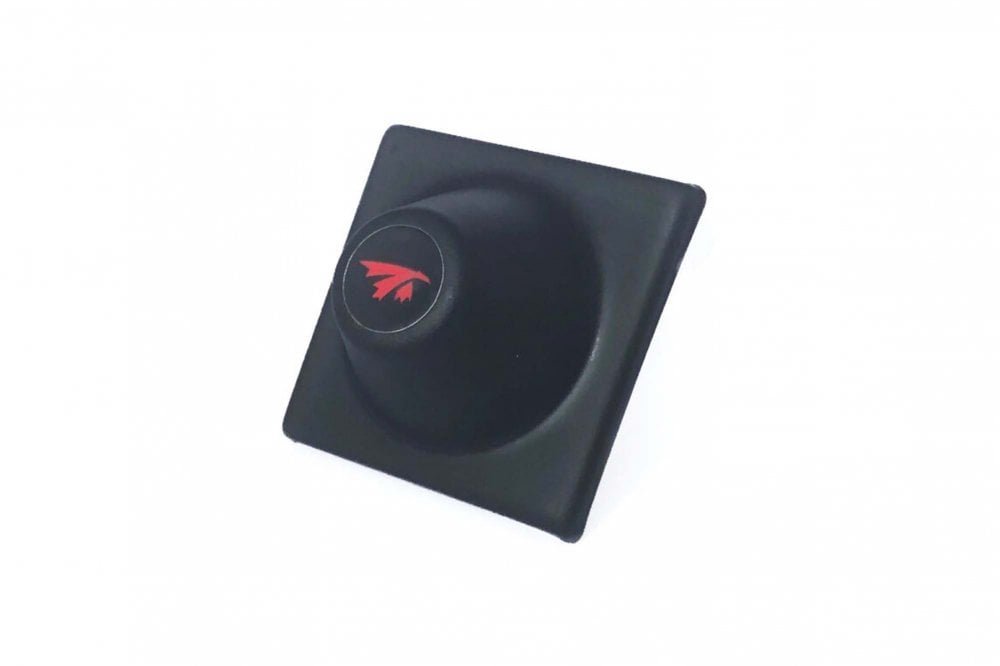

TrueRC Sniper II 5.8 RHCP

Code: TrueRC-01-05-Sniper-II-5.8-RHCP

The newSNIPER II 5.8is the latest redesign of the sniper antenna. Almost 1/4 of the size of the original, it put an end to the only downside of this type of antenna, their size. High gain and high axial ratio make it perfect for far off venture with or without base station.

Specification:

• Frequency: 5.3-6.5GHz

• Gain: 13.5 dBic

• Polarization: RHCP or LHCP

• Radiation efficiency: 98%

• Beam-width (H and V)*: 80deg

• Beam-width (H and V)@-3dB**: 45deg.

• Connector: SMA male

• Dimension: 52mm x 52mm x 37mm

• Weight: 15.5g

• Coverage where reception is at least equivalent to an omni.

• Coverage where at least 70% of the max range is obtained

Package contains:

• 1x Sniper II 5.8 RHCP
