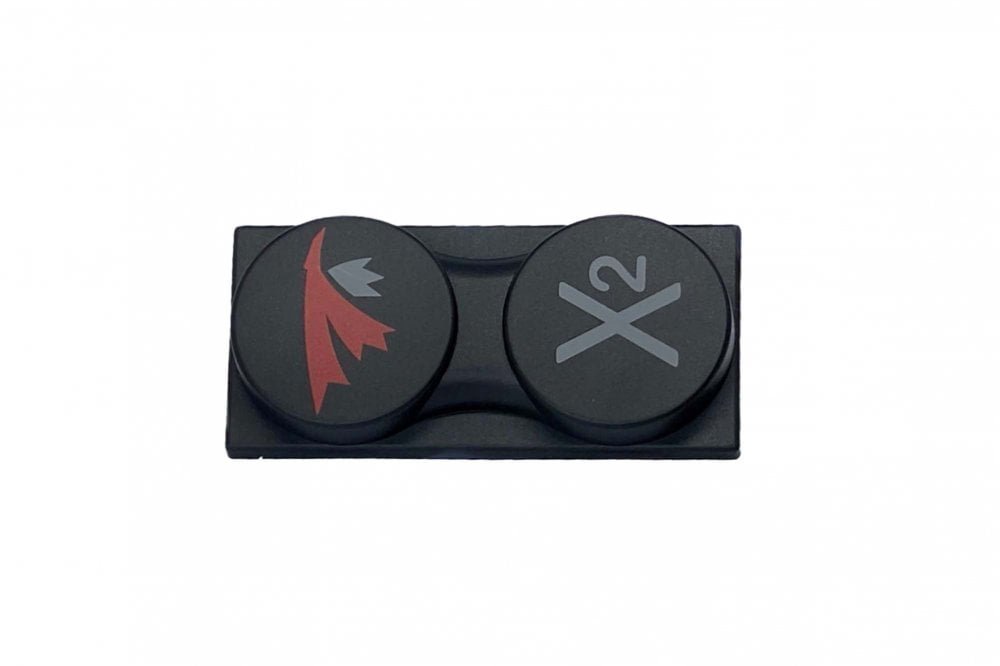

TrueRC X²-AIR 5.8 MK II

Code: TrueRC-01-04-X²-AIR-5.8-MK-II

Following on the latest improvement of the X-AIR 5.8 MK II, this shrunk downX²-AIRis nothing less than the original beside its size. Bringing the high gain and wide horizontal beam in a new compact and light package.

Specification:

• Bandwidth: 5.1GHz-7.0GHz

• Gain: 13 dBic

• Beam-width Horizontal*: 150deg

• Beam-width Vertical*: 62deg

• Hor. beam @-3dB**: 74deg.

• Vert. beam @-3dB**: 34deg.

• Connector: SMA

• Dimension: 72mm x 34mm x 22mm

• Weight: xxg

• Coverage where reception is at least equivalent to an omni.

• Coverage where at least 70% of the max range is obtained.

Package contains:

• 1x X²-AIR 5.8 MK II
