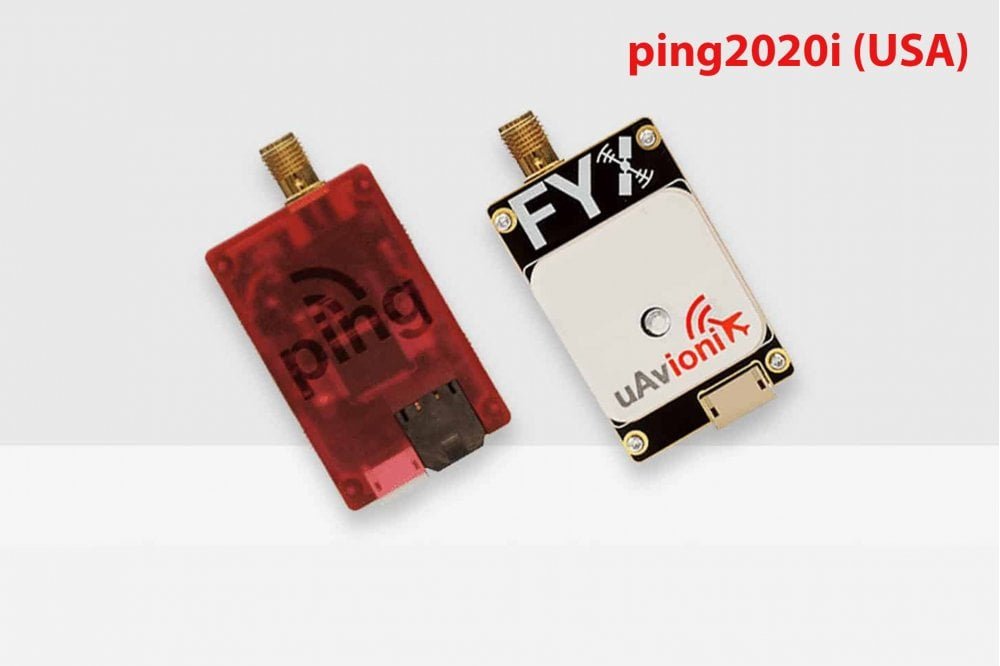

uAvioniX - ping2020i ADS-B Transceiver (USA)

Code: RC model-01-08-ping2020i-USA

uAvionix ping2020i ADS-B Transceiver- USA

Ping2020i is the world’s smallest, lightest, and most affordable full-range, dual-link Automatic Dependent Monitoring-Broadcast (ADS-B) transceiver with integrated Satellite Based Augmentation System (SBAS) Global Positioning System (GPS) and precision barometric sensor. At just 26 gramsit assists with Detect and Avoid (DAA) for Unmanned Model Systems (RC model) operations in the National Airspace System (NAS).

*ping2020i is NOT approved for use in the United Kingdom. Please see ping1090i instead uAvioniX uAvionix - ping1090i ADS-B Transceiver - Sensors *

At just 26 grams, it assists with Detect and Avoid (DAA) for Unmanned Model Systems (RC model) operations in the National Airspace System (NAS).

All-in-one 978MHz ADS-B Out, GPS, and Baro

Ping2020i detects model threats on both 1090MHz and 978MHz within a 100 statute mile radius in real-time and allows nearby model to see you on 978MHz.

Integrated WAAS GPS

The integrated uAvionix FYX GPS provides accuracy and integrity for protection against jamming and GPS anomalies.

Plug and Play with Your Autopilot

Ping2020i integrates seamlessly with Ardupilot and PixHawk based autopilots, getting you from setup to launch in only a few lines of code. Extend ping2020i’s hardware integrity to the rest of your platform with Auterion Skynode, the enterprise-ready autopilot.

Note: Please check your countries radio license legislations. ADS-B out can require a permit to transmit on 978 Mhz.

Ping2020i is the world’s smallest and lightest full range ADS-B transceiver. ADS-B helps model operators sense and avoid possible collisions through a constant exchange of real time position data. ADS-B is mandated by the FAA for all model in the U.S. National Airspace by 2020. Used now primarily on manned model, uAvionix has miniaturized the equipment to make it usable for small RC models. ping2020i measures 25mm x 39mm x 12mmwhich is a fraction of the size of earlier units. At just 26 gramsping2020i is ideal for RC model applications to improve safety with minimal impact to capability and performance. ping2020i detects ADS-B model within a 100 statute mile radius in real time, dramatically improving operator awareness of threats in the area including model beyond line of sight.

Package contains:

• ping2020i UAT(978MHz) ADS-B transceiver

• Power cable

• ADS-B Antenna

• Device programmer

• Wiring harnesses for Pixhawk, Pixhawk 2
