PingUSB Dual-Band ADS-B Traffic Receiver

pingUSB is the worlds smallest, lightest, and most affordable dual-band ADS-B traffic receiver. View realtime ADS-B traffic on your Electronic Flight Bag (EFB) app on your mobile device wirelessly, or on your PC with USB.

Live ADS-B Traffic On Your EFB

pingUSB receives ADS-B traffic on both 978MHz and 1090MHz, and delivers real-time position reports to your favourite EFB supporting the GDL 90 protocol, including ForeFlight Mobile, EasyVFR, AirMate, and Oz Runways

See the Whole Picture

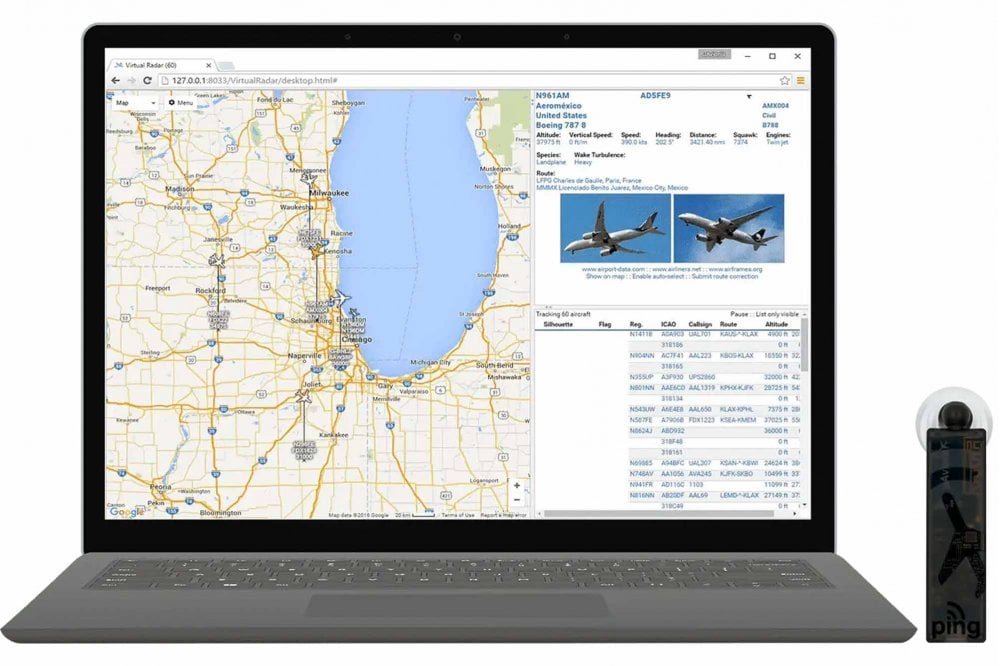

In addition to Wi-Fi EFB capability, pingUSB provides a direct USB connection to PC based applications such as open-source Virtual Radar Server. pingUSB is plug and play compatible with the senseFly eMotion Ground Control Station (GCS) software platform.

Specification

InputVoltage / Power: 4-6V / 150mA

Size: 34x19x8mm

Weight: 5 grams

Receive

MTL 1090MHz: -84dBm

Dynamic Range: -81 to 0dBm

MTL 978MHz: -93dBm

Dynamic Range: -90 to -3dBm

(pingUSB does not receive or process FIS-B weather data)

Interface: MavLINK Serial 57600bps

Features

• Tracks model equipped with 978MHz and 1090 MHz ADS-B.

• Easily integrates with Virtual Radar Server allowing identification and visualization of model in real-time.

• Low power consumption and a small/lightweight form factor make it ideal for any application.

• Includes USB cable, software, and instructions for easy configuration.

• Simple to set up and easy to use.

• pingUSBdoes not processUAT FIS-B products such as weather radar, METARs or TAFs

Package Includes

• 1 x pingUSB ADS-B receiver

• 1 x USB cable

• 1 x Quick Start Guide
