Vulcan UAV - 250A Power Distribution Board, Double-Sided

Code: BLD-A-06-03-250A-PDB

Vulcan UAV- 250A Power Distribution Board, Double-Sided

Power distribution board for larger multicopters, hardware included

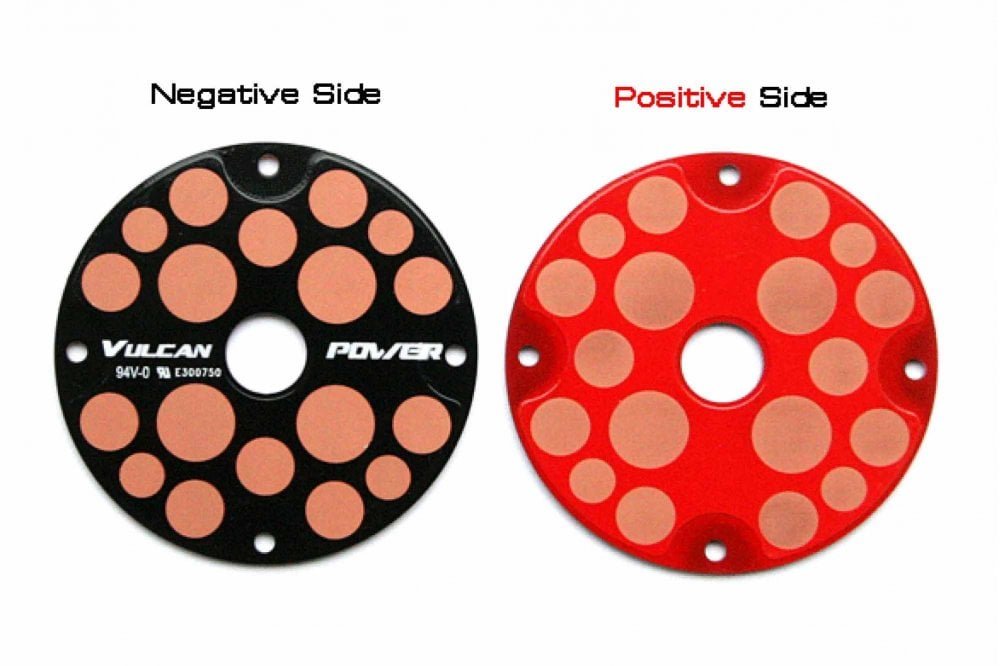

This is a double-sided board, one side for positive connections, the other for negative, making it a very safe board which is almost impossible to short

It features no less than 18 pairs of solder pad connection points of different sizes to suit various uses from very heavy duty battery connections to small auxilliary power feeds Diameter: 64mm

Package contains:

• 1 x PDB, 250A

Specification

Weight: 16g

Mounting Holes: 3mm

Solder pad diameter: 7 - 12mm

Current Capacity: up to 250A

10mm Nylon Mounting Pillars and 6mm bolts included

Please Note:Due to the high copper thickness on this board you will need a powerful soldering iron to make good solder joints. Recommended 80W
