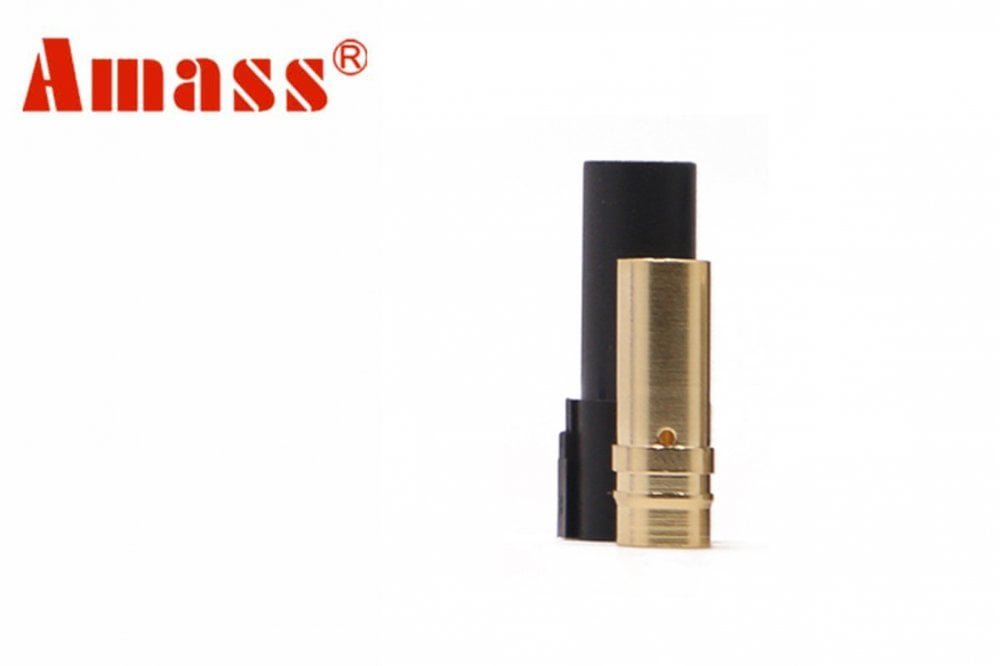

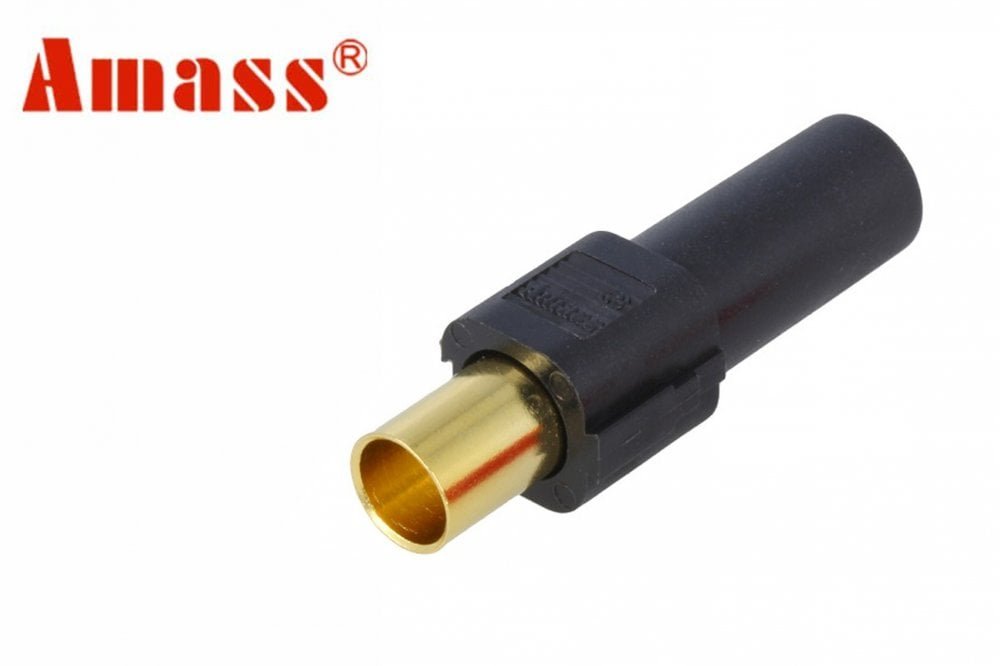

XT150-F - Black

Code: AM-A-07-02-XT150-F-BLACK

XT150 manufactured by AMASS 1 x XT150 Female Black

Specification

Manufacturer:AMASS

Connector:plug

Type of connector:DC supply

Connector series:XT150

Kind of connector:Female

Number of pins:2

Mechanical mounting:for cable

Electrical mounting:soldering

Contact plating:gold flash

Current rating:60A

Flammability rating:UL94V-0

Operating temperature:20...120°C

Rated voltage: 500V

Spatial orientation: straight

Contact material:brass

Mechanical durability:1000 cycles

Body material:polyamide

Wire size:8AWG

Includes:

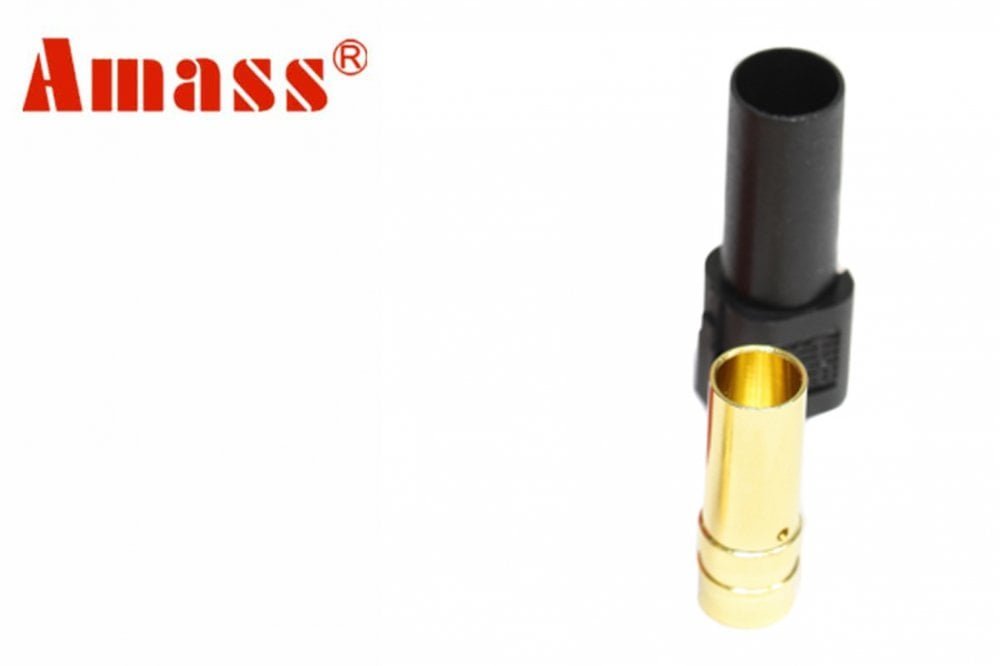

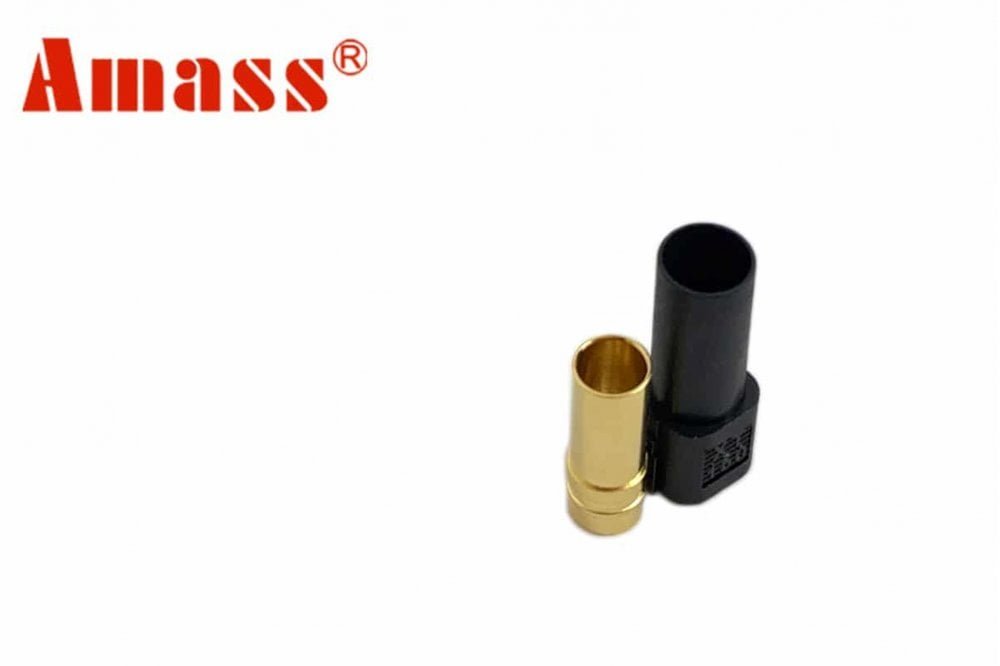

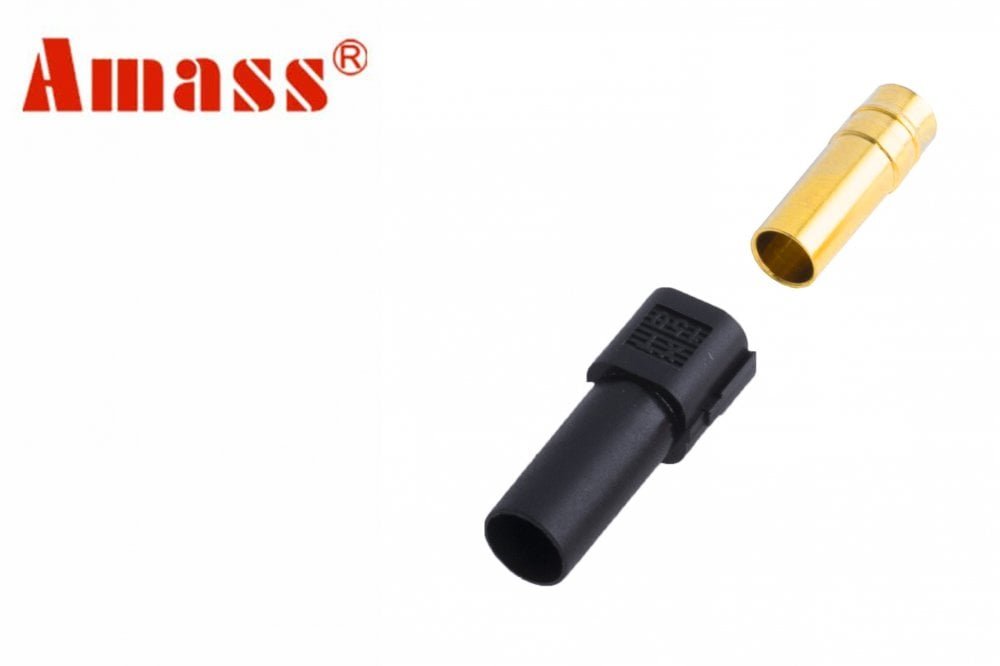

• 1 X Amass XT150 Female 6mm Connector

• 1 X Amass XT150 Female Enclosure
