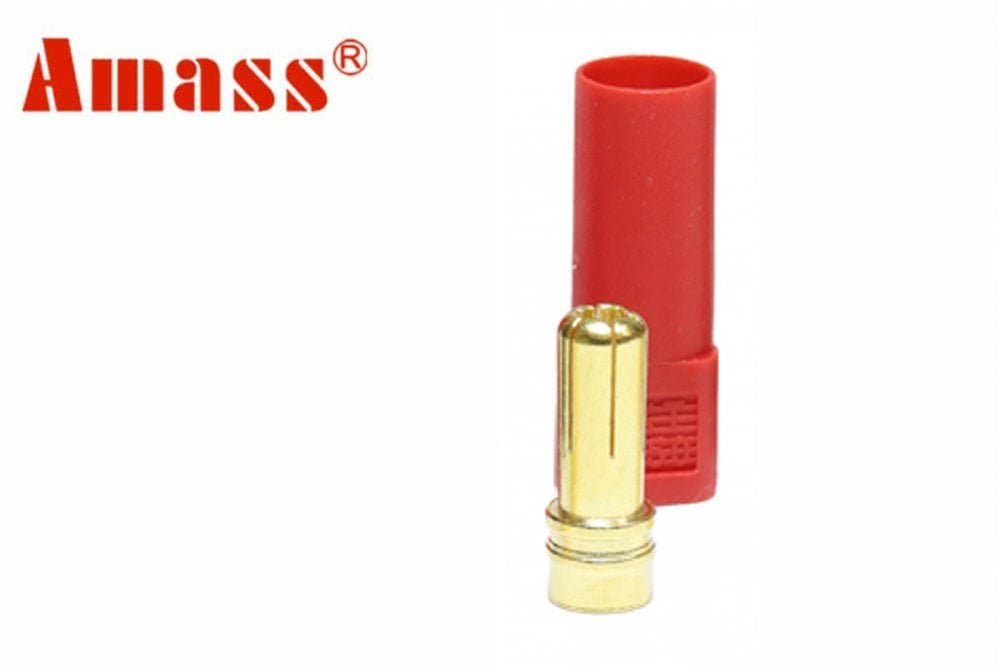

XT150 - Male - Red - 1 x Connector

Code: AM-A-06-03-XT150-M-RED

XT150 manufactured by AMASS 1 x XT150 Male Red

Specification

Manufacturer:AMASS

Connector:plug

Type of connector:DC supply

Connector series:XT150

Kind of connector:male

Number of pins:2

Mechanical mounting:for cable

Electrical mounting:soldering

Contact plating:gold flash

Current rating:60A

Flammability rating:UL94V-0

Operating temperature:20...120°C

Rated voltage: 500V

Spatial orientation: straight

Contact material:brass

Mechanical durability:1000 cycles

Body material:polyamide

Wire size:8AWG

Includes:

• 1 X Amass XT150 Male 6mm Connector

• 1 X Amass XT150 Male Enclosure
