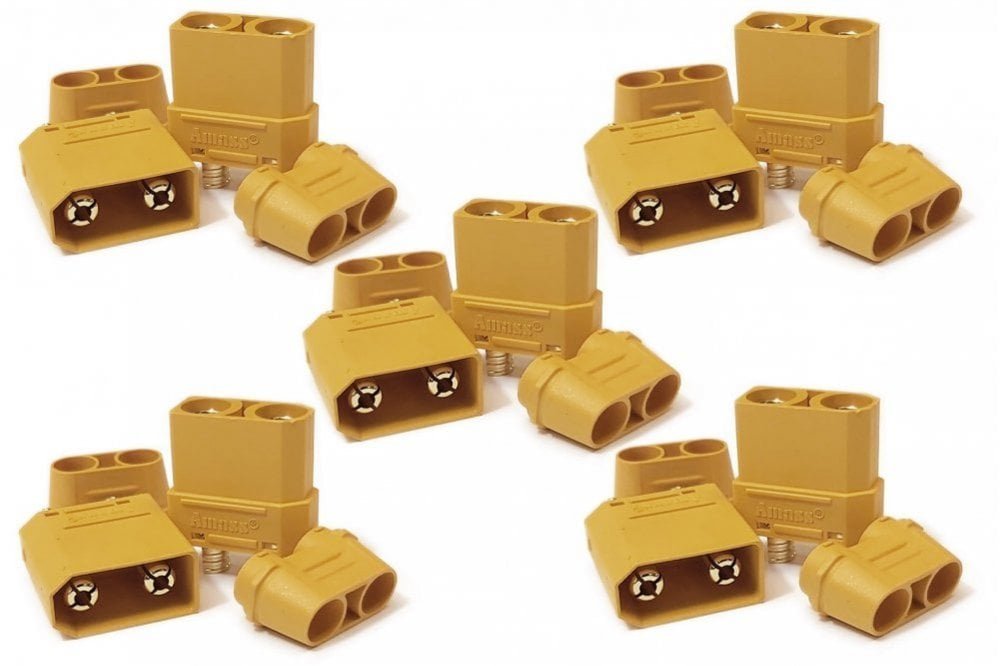

XT90H - 5 Pairs Code: AM-A-05-04-XT90H-PR-X5

Code: AM-A-05-04-XT90H-PR-X5

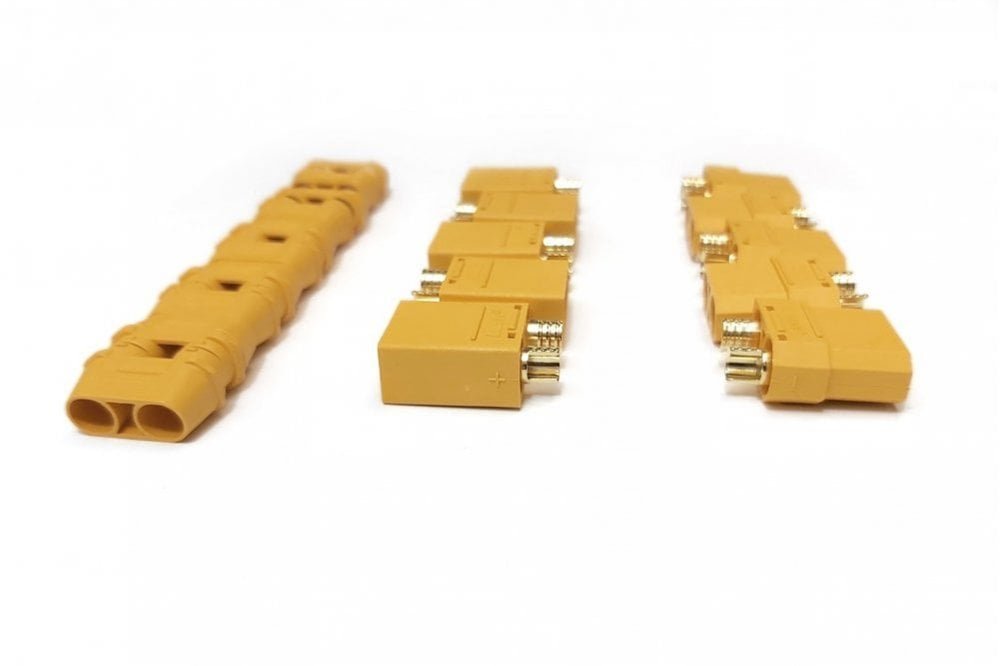

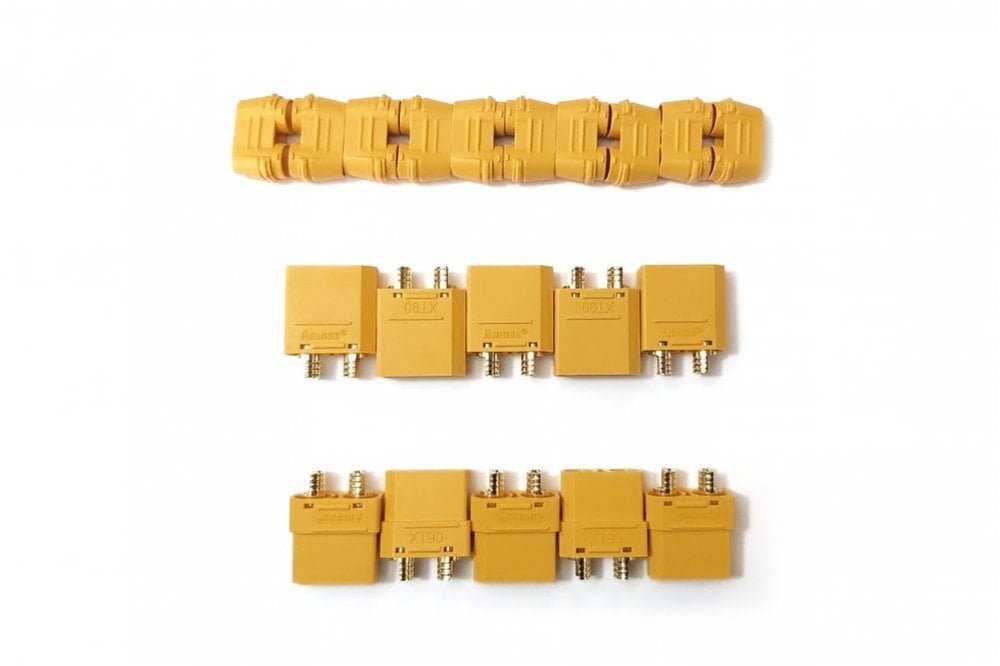

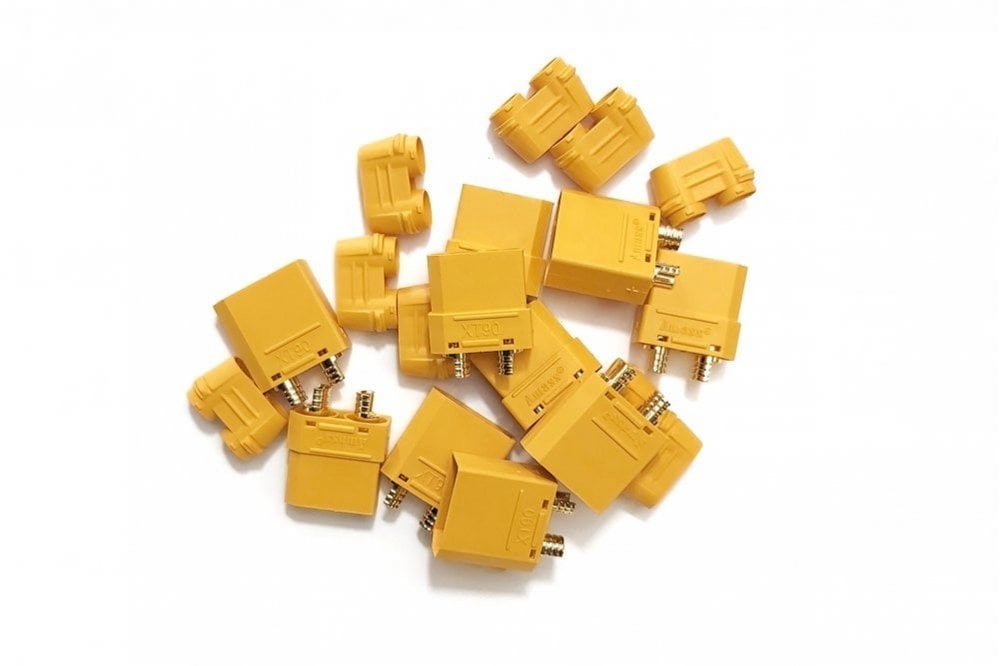

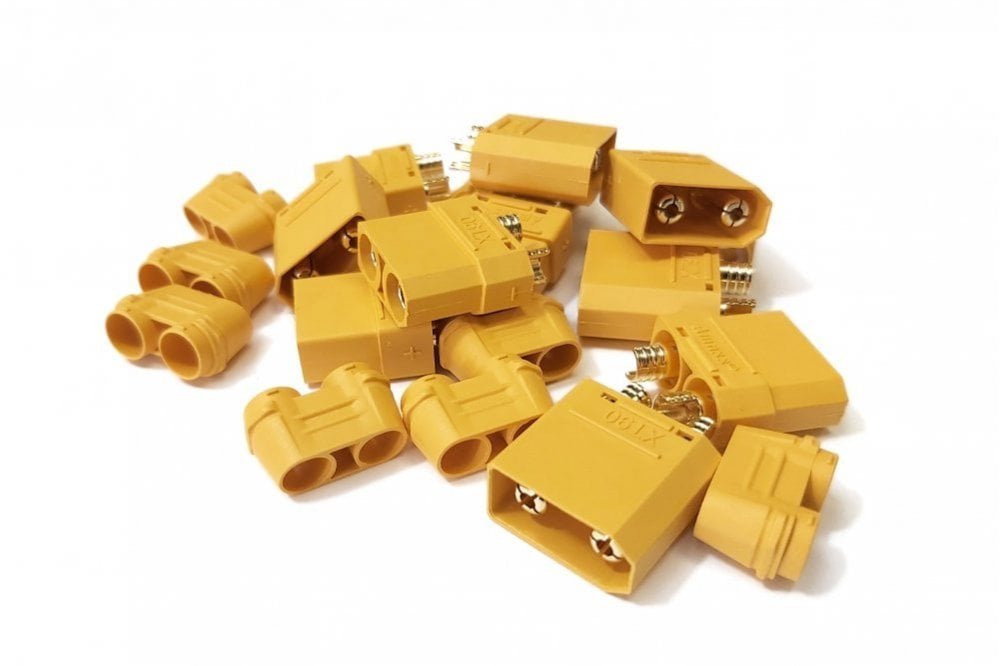

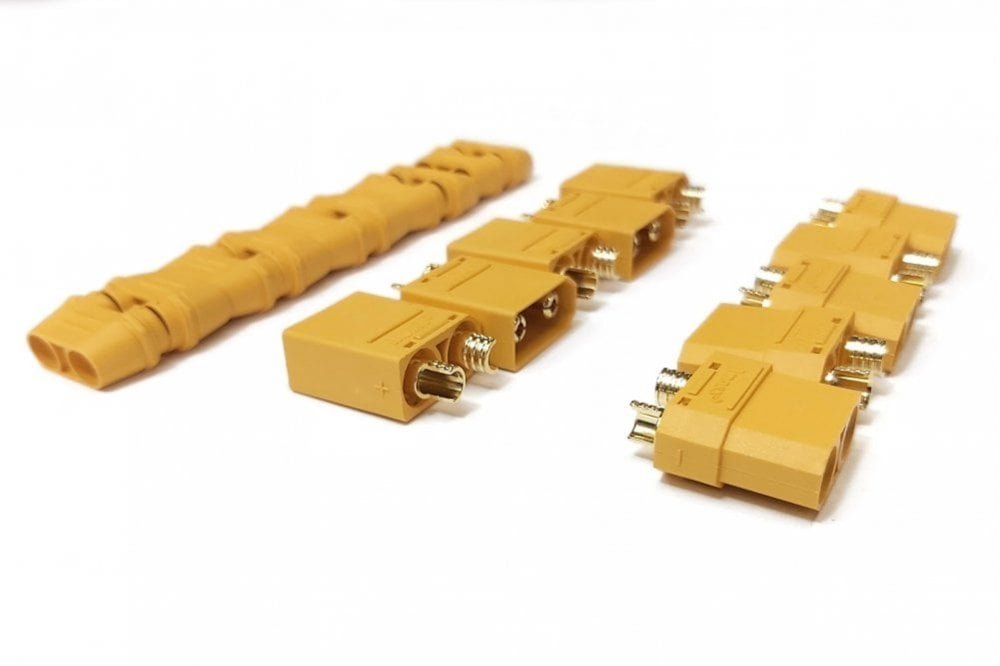

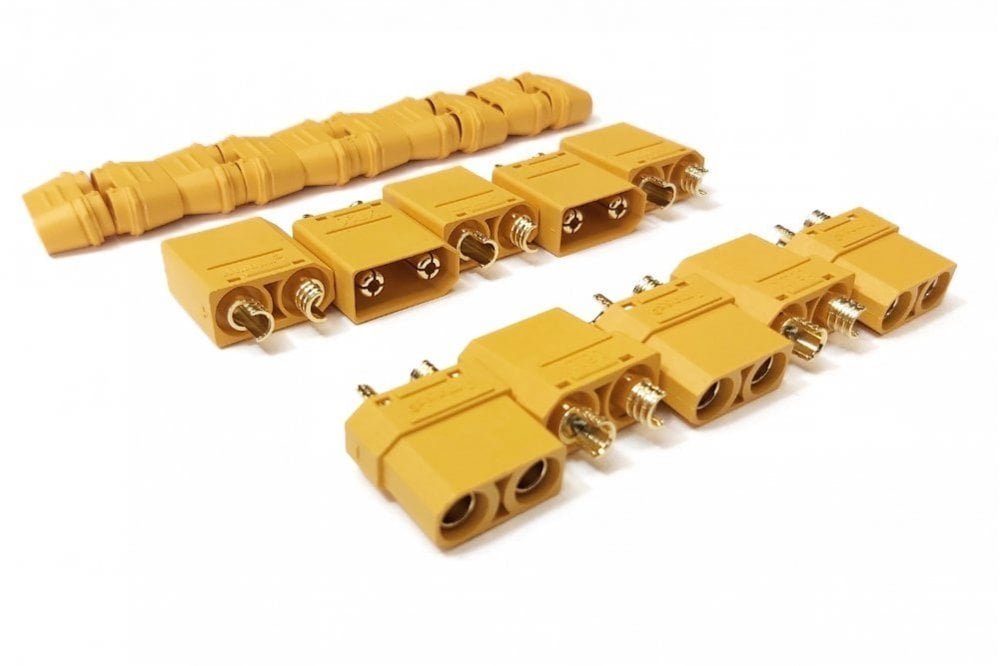

Original Nylon XT90H plugs

Manufacturer: AMASS

Connector: plug

Type of connector: DC supply

Connector series: XT90

Kind of connector: male

Number of pins: 2

Mechanical mounting: for cable

Electrical mounting: soldering

Contact plating: gold flash

Colour: yellow

Current rating: 40A

Flammability rating: UL94V-0

Operating temperature: -20...120°C

Rated voltage: 500V

Spatial orientation: straight

Contact material: brass

Mechanical durability: 1000 cycles

Body material: polyamide

Wire size: 10AWG

Includes:

• 5 X Amass XT90H Male Connector

• 5 X Amass XT90H Female Connector

• 10 X Amass XT90H Enclosure
