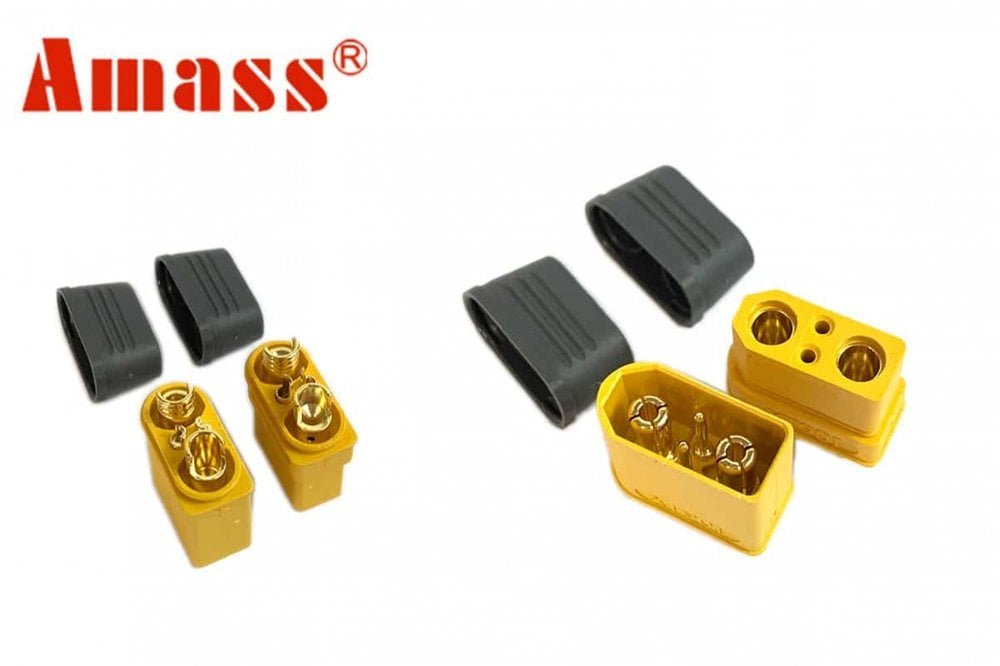

XT90i - 2 Pairs

Code: AM-A-06-02-XT90i-PR-X2

XT90I manufactured by AMASS XT-90I is based on the popular XT90 but now integrates 2 pins. Good for ESC signal wires and ground.

Specification

Manufacturer: AMASS

Connector: plug

Type of connector: DC supply

Connector series: XT90

Kind of connector: Female and Male

Number of pins: 4

Mechanical mounting: for cable

Electrical mounting: soldering

Contact plating: gold flash

Colour: yellow

Current rating: 40A

Flammability rating: UL94V-0

Operating temperature: -20...120°C

Rated voltage: 500V

Spatial orientation: straight

Contact material: brass

Mechanical durability: 1000 cycles

Wire size: 10AWG

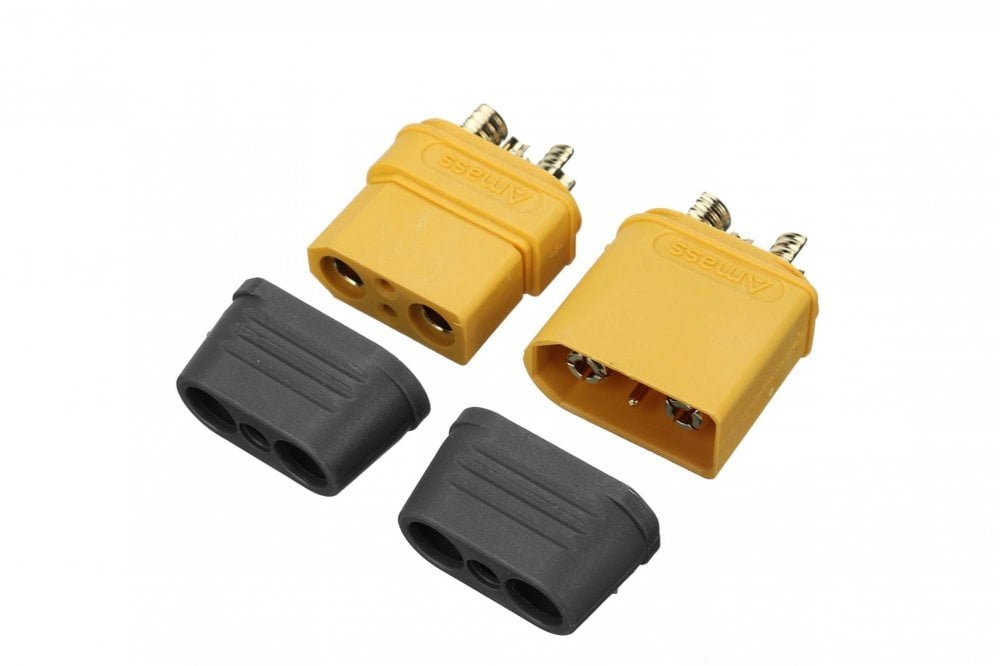

Includes:

• 2 X Amass XT90I Male Connector

• 2 X Amass XT90I Female Connector

• 4 X Amass XT90I Enclosure
