XT90PB-M

Code: AM-C-02-04-XT90PB-M

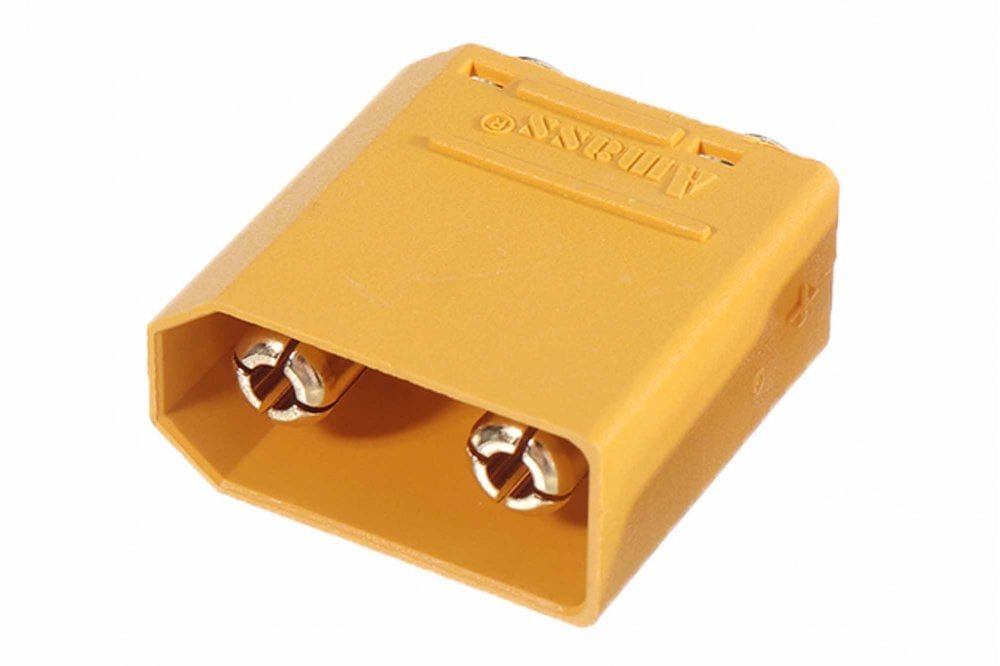

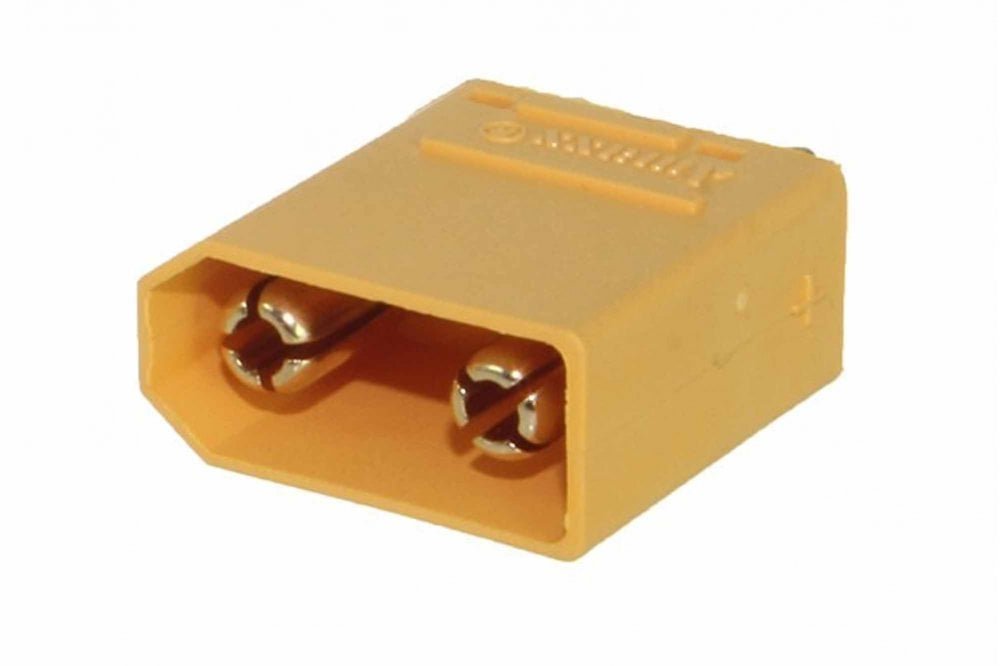

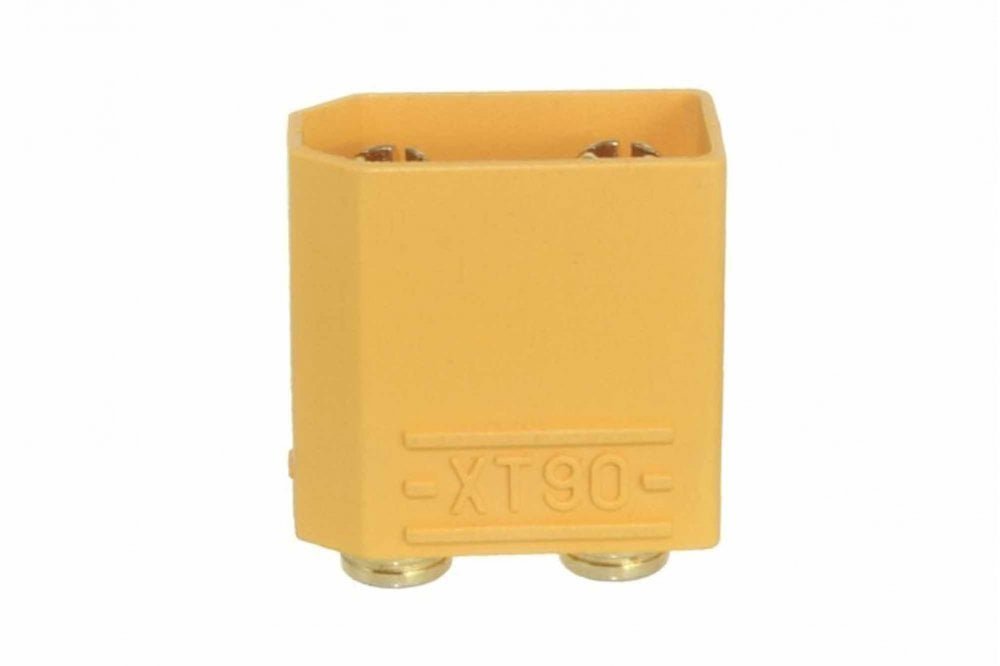

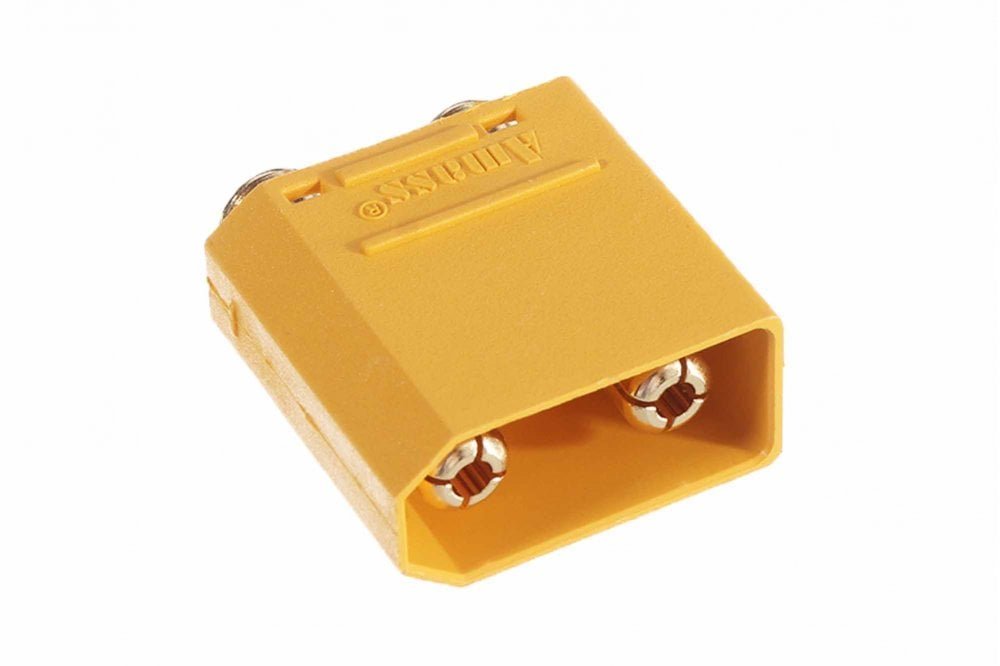

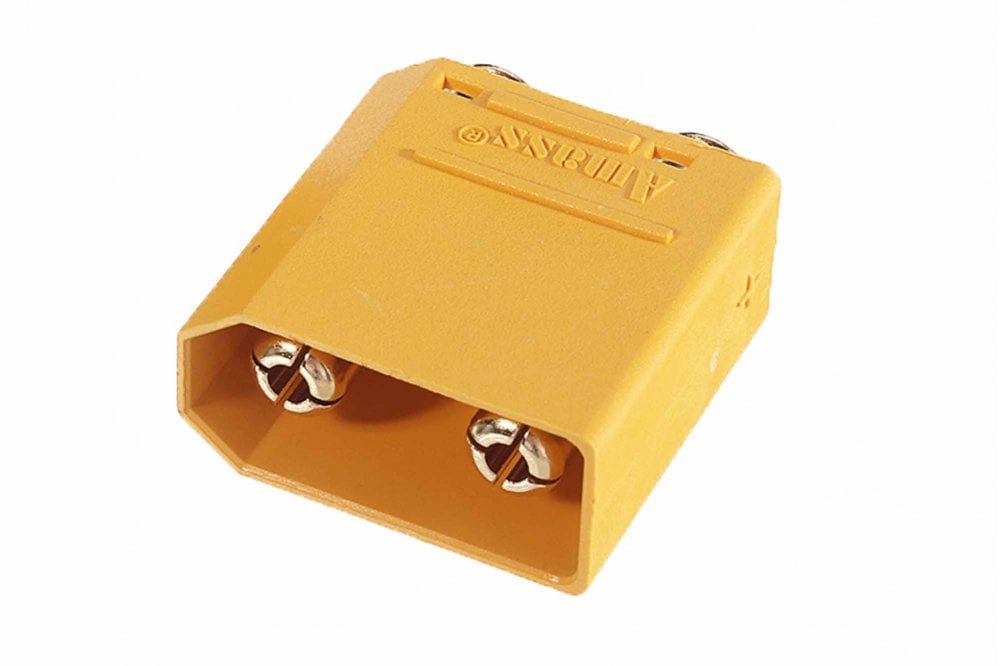

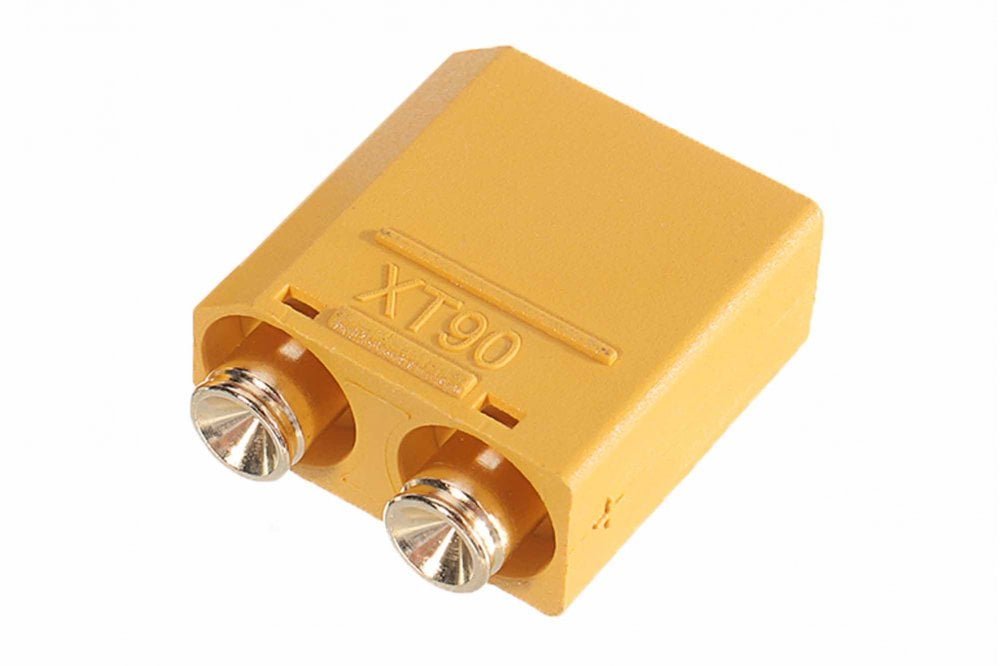

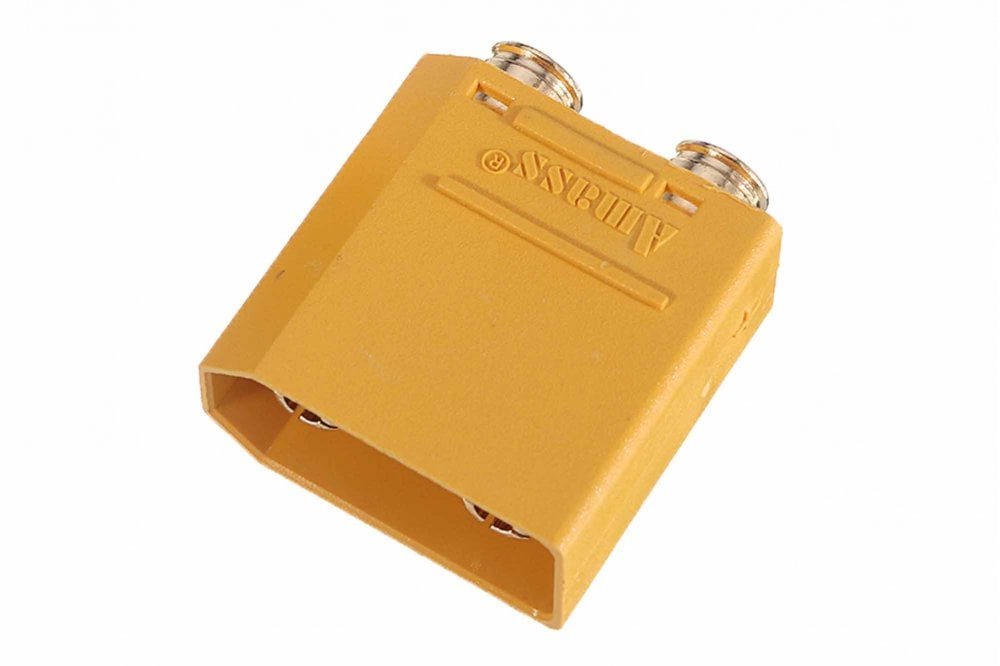

Male XT90PB connector featuring gold plated brass contacts and high temperature nylon housing. The connectors are housed in a compact package and are suitable for PCB lithium battery applications.

Manufactured by AMASS

Current rating: 30A

Contact material: gold plated brass

Insulator material: nylon

Recommended wire size: 12AWG

Specification

Manufacturer:AMASS

Number of Ways2

GenderMale

ColourOrange

MPNXT90PB-M30.G2.Y

Dielectric Withstand VoltageDC 500V

Peak Current Rating60A

Contact Resistance0.4mΩ

Contact MaterialGold Plated Brass

Includes:

• 1 X Amass XT90PB Male Connector
