Gremsy G-Hadron

Code: Gremsy-G-Hadron

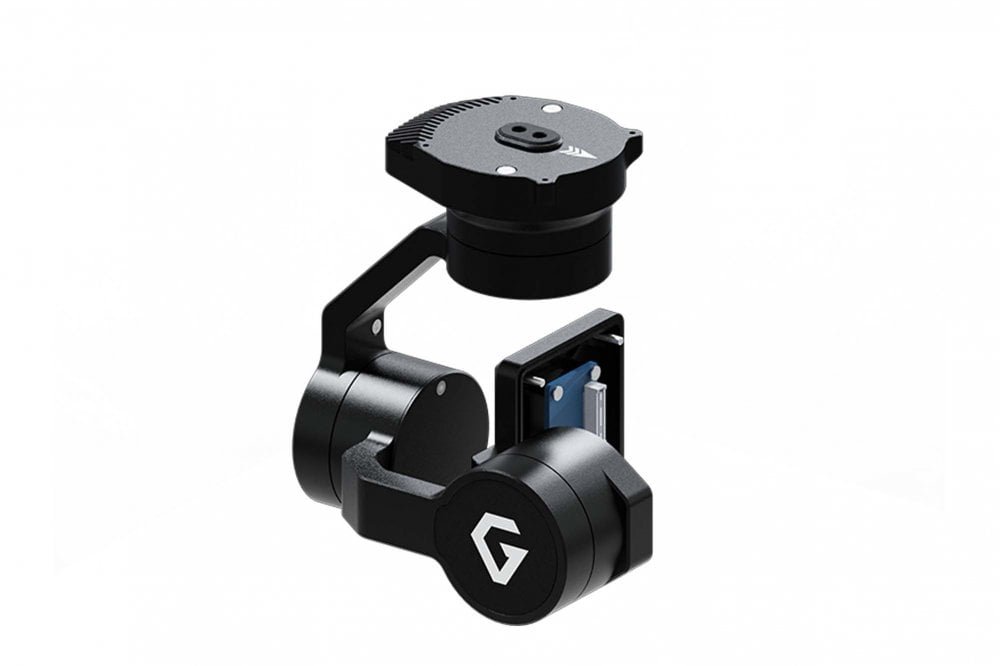

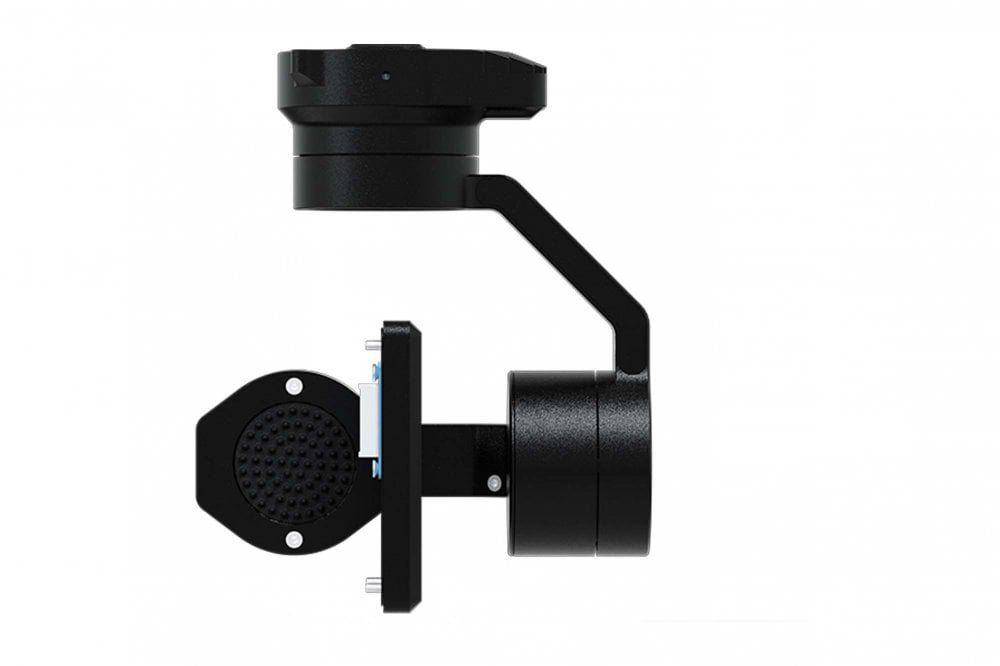

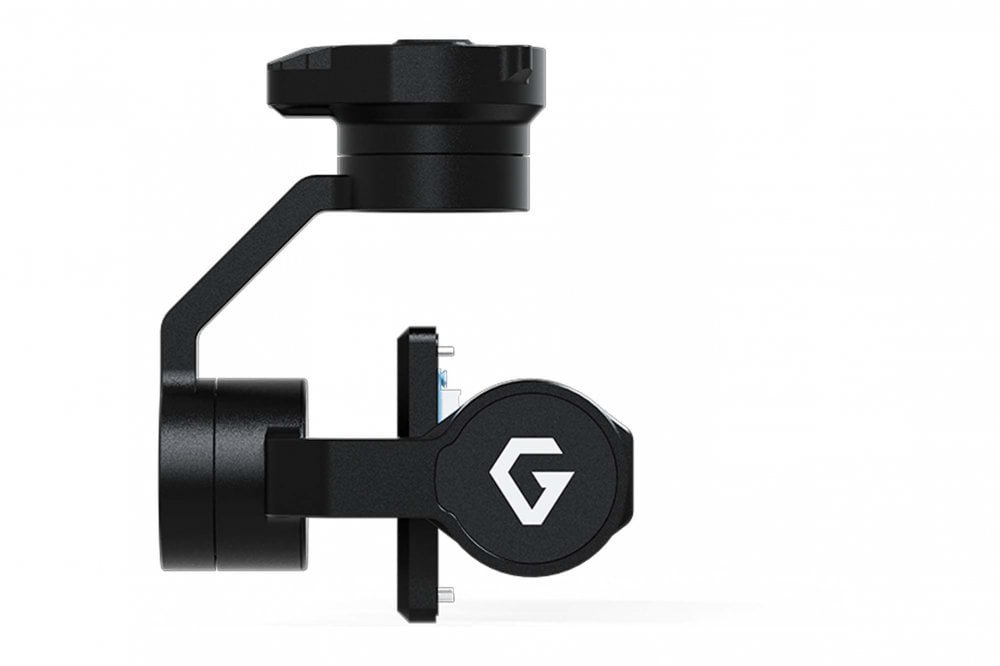

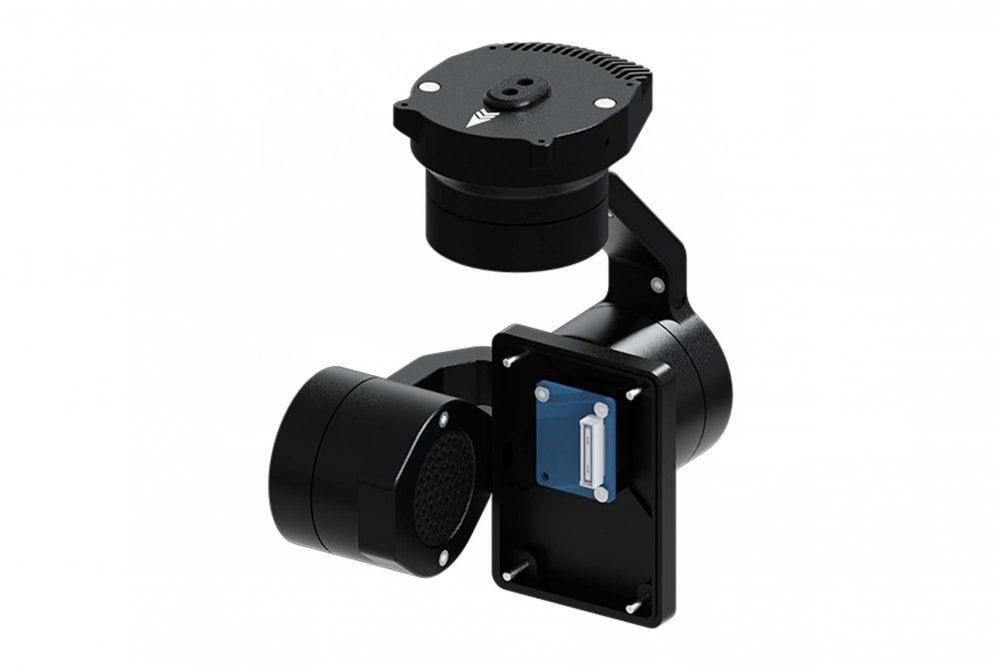

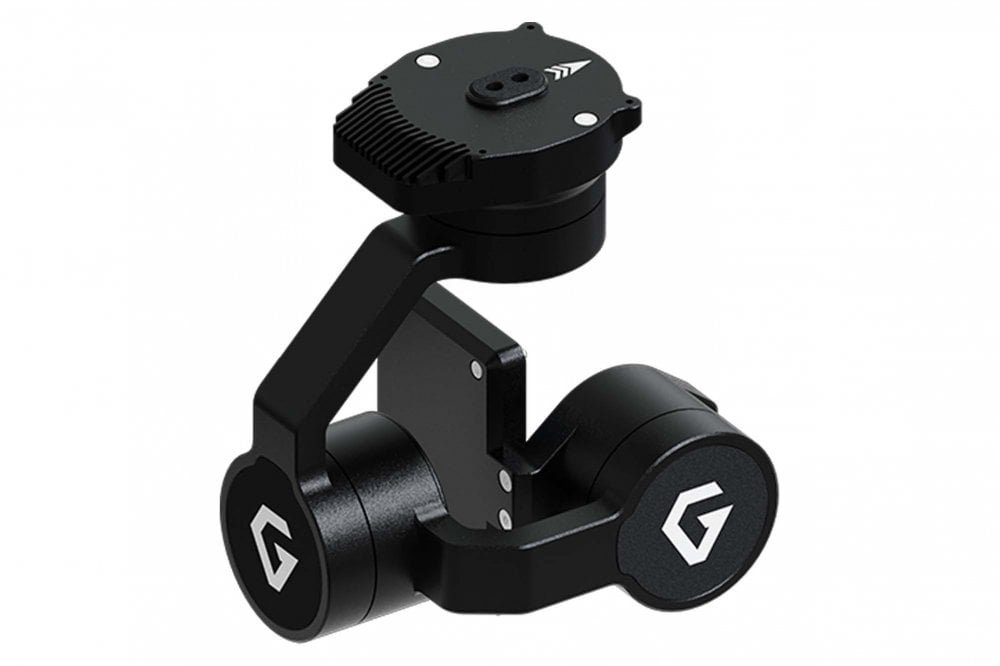

Gremsy G-Hadron

G-Hadron is the ultimate compact and lightweight gimbal, perfectly designed to carry the high-performance dual thermal and visible camera module - Hadron 640R. With its optimized size and weight, G-Hadron ensures a plug-and-play setup for the Hadron 640R.

Specification:

• Product name - G-Hadron

• System Type - 3-axis Camera Stabilizer

• Construction - All Aluminium

• Weight - 164g

• Supported Camera - Hadron 640 R

• Supported Platforms - Pixhawk, CubePilot, Skynode

• Input Power - 15V-52V

• Connections - USB 2.0, UART, SBus

• Gimbal Mode - Lock Mode, Follow Mode, Mapping Mode

• Pan Range - ±175°

• Tilt Range - ±120°

• Roll Range - ±40°

Package contains:

• 1x G-Hadron Gimbal

• 1x Damping

• 1x Power Cable

• 1x USB Type-C Cable

• 1x UART Cable

• 1x G-Hadron Hub

• 8x M1.6x4 - ISO 4762

• 8x M1.6x8 - ISO 4762

• 8x M3x6 - ISO 4762

• 3x 15HA Rubber Ball

• 1x Allen Key 1.5mm

• 1x Allen Key 2.5mm
