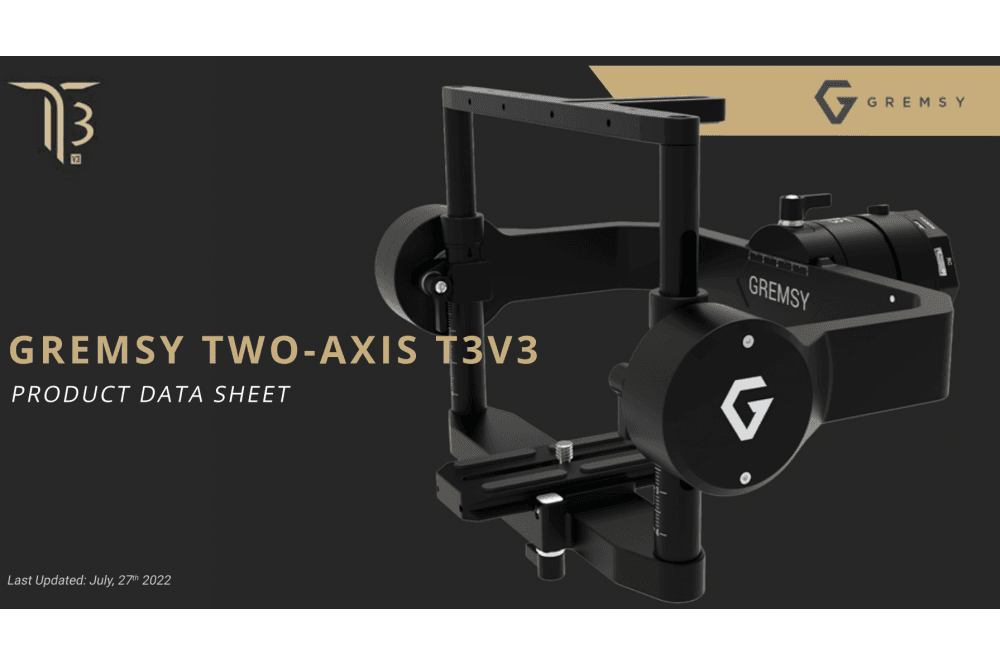

Gremsy - T3V3- TWO AXIS

Code: GREMSY-GIMBAL-T3V3-TWO-AXIS

Gremsy T3 V3- TWO AXIS

• Front mounted version

WHAT ARE THE PROS OF THE TWO-AXIS GIMBAL SYSTEM?

Though the three-axis gimbal offers an extra level of stabilization, not all are superior to two-axis gimbals for industrial applications. However, if you're looking for a small, light gimbal, optimized in height and mass and highly adaptable with multiple platforms, the 2-axis gimbal is a great option. It provides the same image and video quality level as three-axis gimbals but gives a longer flight time. Plus, it can be optimized for specific applications like land surveying, 2D & 3D LiDAR mapping, wind turbine, power line inspection, bridge inspection and more.

For instance, when it comes to bridge inspection, accessing the underside of a bridge is a major obstacle while conducting inspections. In this case, a equipped with a front-mounted two-axis gimbal gives operators an unobstructed view from top to bottom. As a result, inspectors could see beneath and beside the spans, gathering valuable visual data on these crucial areas of the bridge.

OPTIMIZED DESIGN FOR LONG FLIGHT TIME

The two-axis T3V3 is built upon the standard T3V3, weighing just 745g and lighter by 30% than the T3V3. Benefiting from its predecessor, the gimbal delivers enhanced capabilities in an optimally lightweight form, allowing for extended flight time to handle a wide range of industrial applications.

HIGHLY ADAPTABLE FOR MULTI-PLATFORMS

Fully supporting MAVLink protocol and enables connections to the most widely used systems available today, the two-axis T3V3 is ready to fly with RC models using CubePilot, PX4, etc.

SUPPORT FLEXIBLE MOUNTING OPTIONS

The two-axis T3V3 comes with 2 mounting options: bottom mount & front mount. With bottom mount option, the gimbal can be readily installed under the model using the standard T3V3 damping system. Some RC models with short-landing gear may require a dampening adaptor, although this depends on your specific setup.

• With front mounting option, the two-axis T3V3 damping system will be custom-made to fit your platform.

BUILT-IN ADVANCED CONNECTIONS

The two-axis T3V3 also provides advanced I/O connections for USB-C, HDMI, AUX, COM, POWER to facilitate communication between the gimbal and your camera, RC model, and remote controller.
