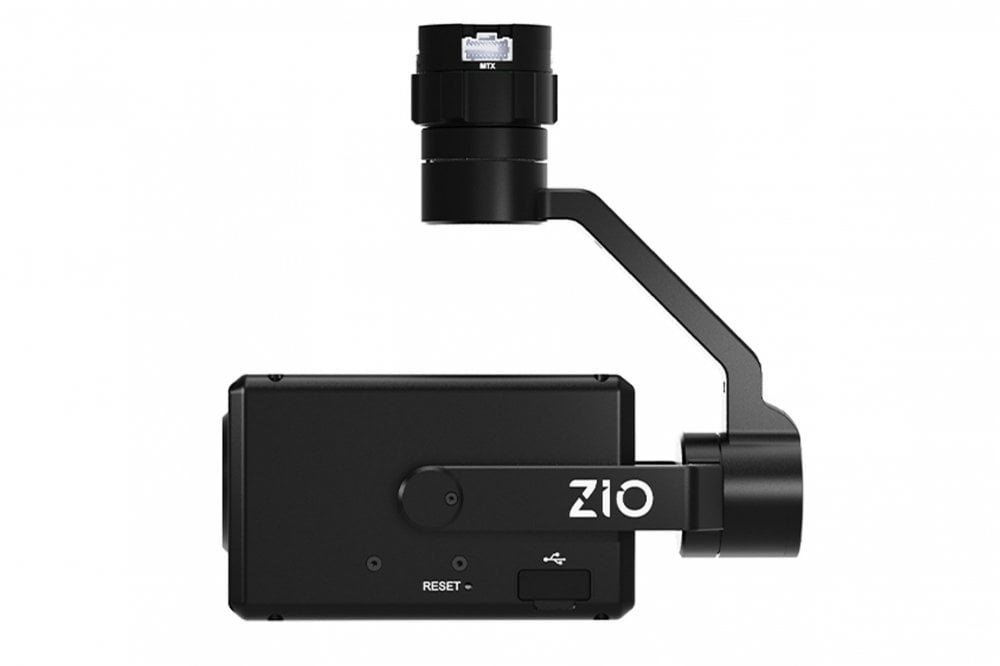

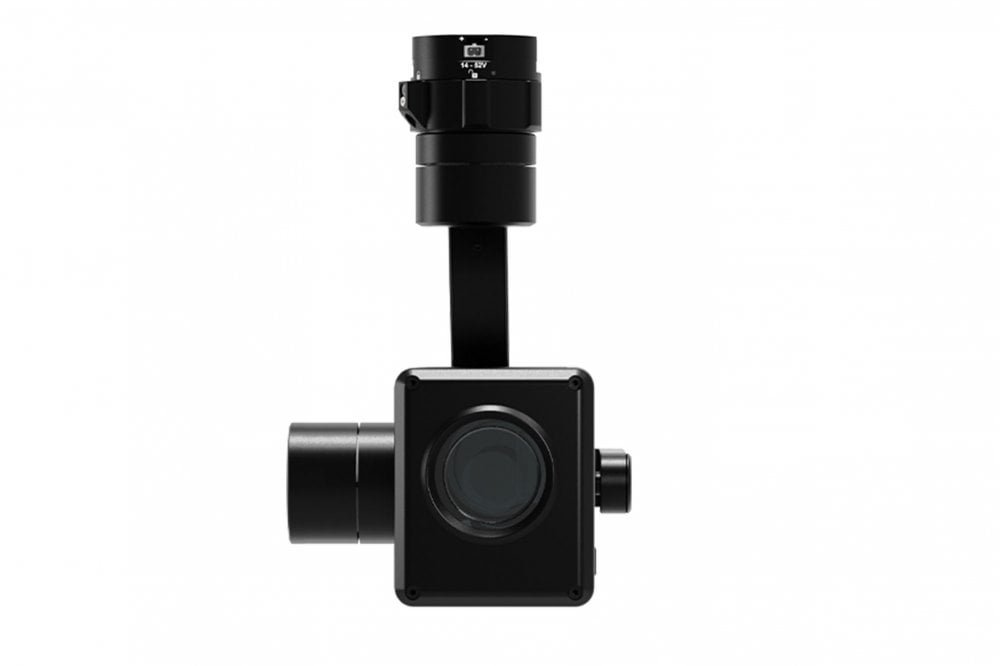

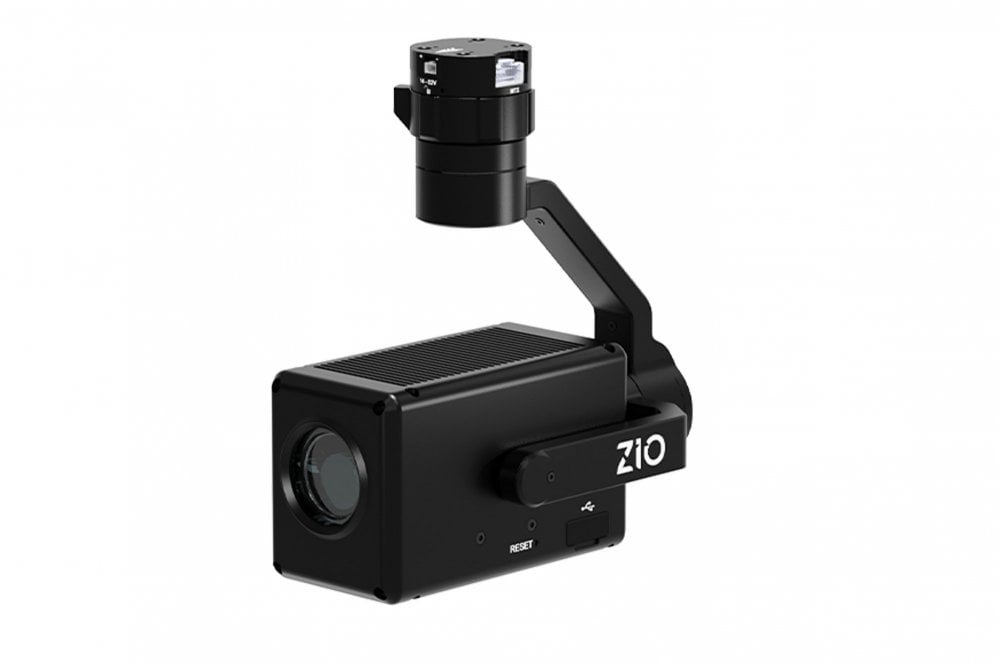

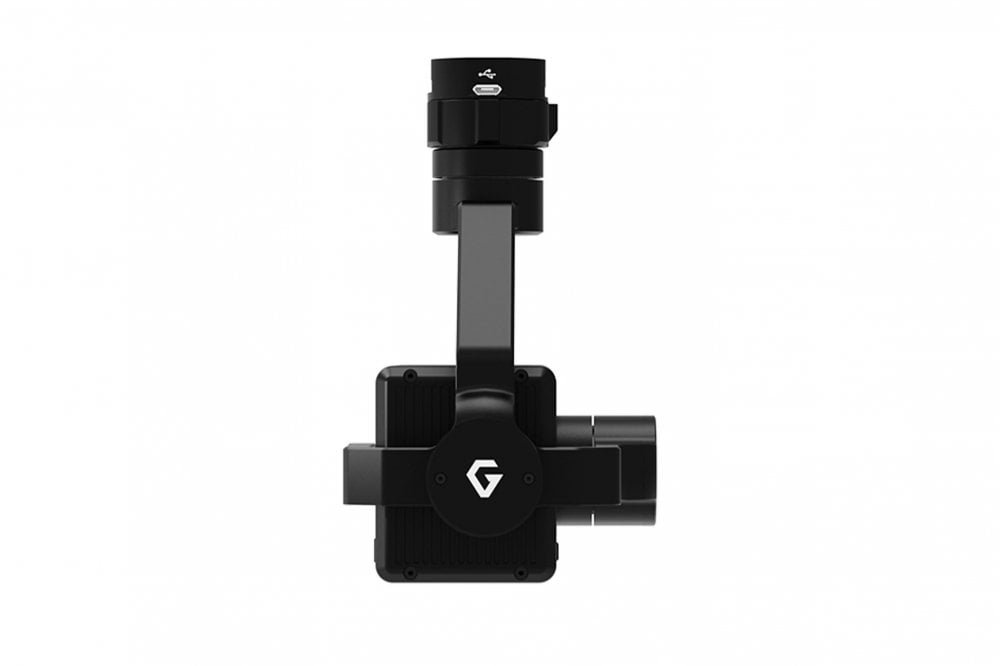

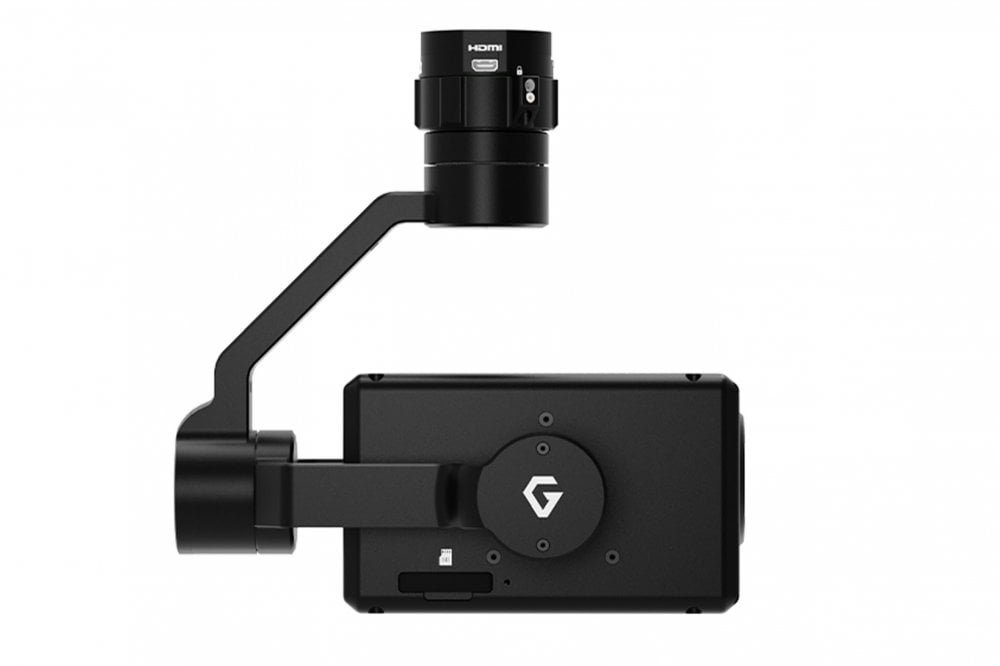

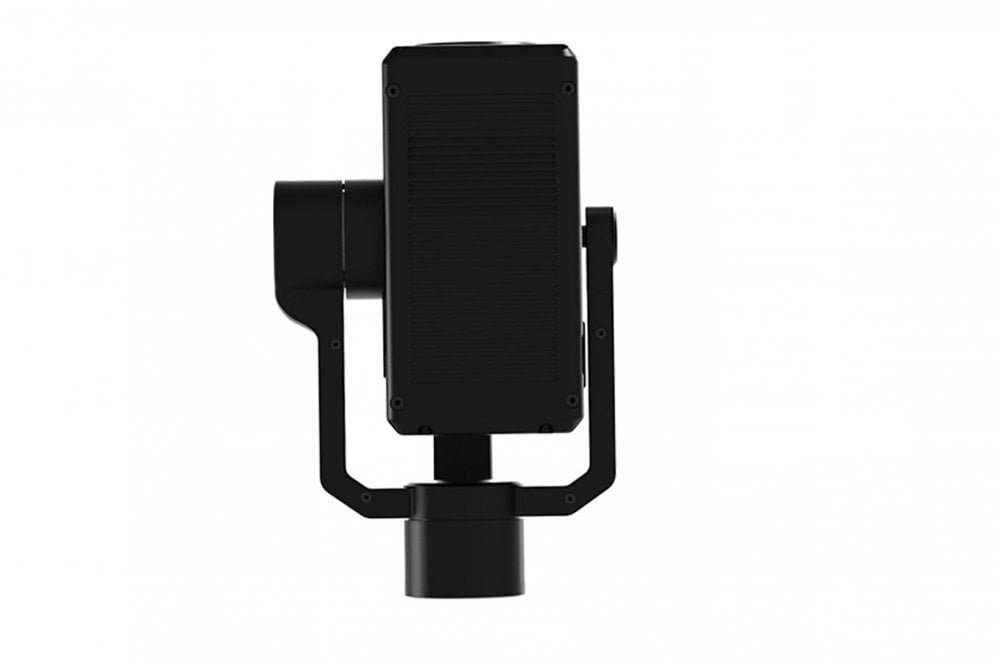

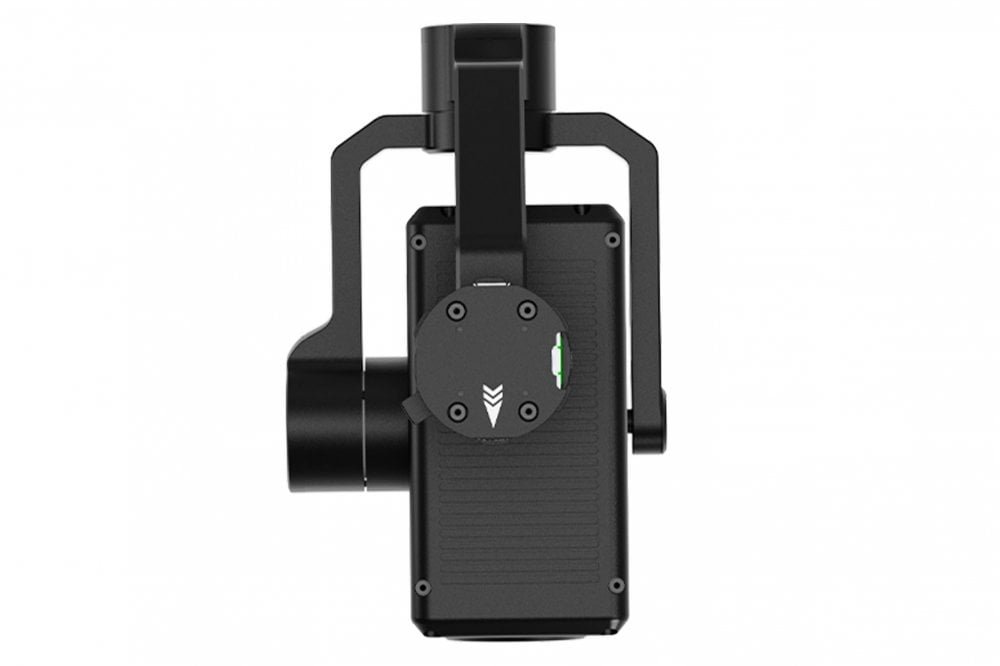

Gremsy - ZIO

Code: GREMSY-GIMBAL-ZIO

Zio is a high-resolution zoom load that combines a Sony sensor with high-stabilized three-axis gimbal technology. It enables industrial inspectors and surveyors to zoom into objects of interest and effortlessly transmit video at 4K resolution, ready to be utilized for a variety of different inspection, surveying, and public safety jobs.

Specifications

• Product NameZIO

• System TypeLoad (including gimbal & camera)

• Weight480g (1.06 lbs)

• Input Power14.5V - 52V

• ConnectionUSB 2.0, UART, Ethernet, Micro HDMI

• Gimbal Mount Bottom mount (Detachable)

• Compatible RCQGroundControl Remote Controller (recommended Herelink)

• Compatible RC modelssupported by PX4 and Ardupilot

Package contains

• 1 x Zio Load

• 1 x Zio Damping

• 1 x Zio Quick Release

• 1 x Allen key 2mm

• 1 x Allen key 2.5mm

• 4 x M3 x 6 Hexagon Screw Bolt Cut Head

• 4 x M3 x 6 Hexagon Screw Flat Head

• 1 x USB Type A to USB Type C Cable

• 1 x Micro USB Cable

• 1 x Zio Control Cable

• 2 x Zio Power Cable

• 1 x Micro SD Card SDXC I, 64GB

30x zoom capability for enhanced capture With optimal zoom levels from 1x to 30x, you can access hard-to-reach areas and obtain a unique view of your objective.

The Zio's sensor offers 4K resolution for high-quality video and image capture, ideal for a variety of demanding applications.

Video stream over hdmi & ethernet Zio enables video stream to your remote controller (with QGroundControl) via HDMI and Ethernet:

• HDMI output: 1920 x 1080 (60p)

• Ethernet output: H264 RTP at 1920 x1080 (60p)

• Combine mode: HDMI output 1920 x 1080 (60p) & Ethernet output H264 RTP 1280 x 720 (60p)

Mavlink support -Fully compatible with MAVLink, Zio is ready to be seamlessly integrated with RC models powered by PX4, Ardupilot. The Zio also gives users advanced control of the camera and gimbal from the remote controller.

Built for industrial applications- Optimal design and advanced functionality make Zio excellent for a range of industrial applications like inspection, roof surveys, power-cable checks, and site-progress monitoring and so on.
