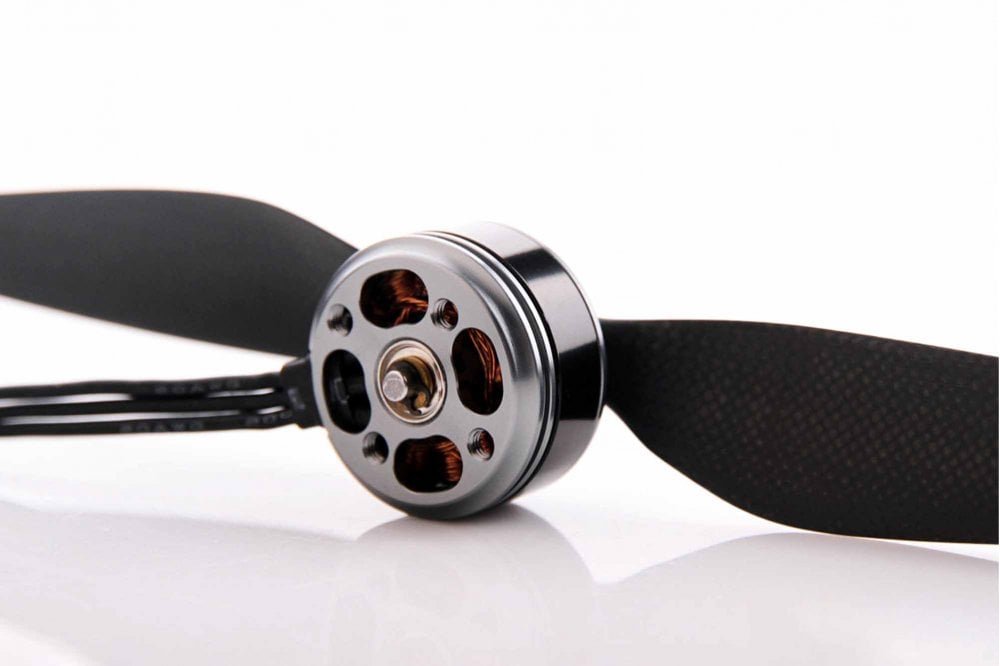

T-Motor MN2206 KV2000

Code: TM-MN-2206-2000KV

These motors are perfect for small planes, and particularly multicopters/RC models such as tricopter, quadcopter, hexacopter, or octocopter. They have high reliability, super accurately balanced, quality oversized bearings, 100mm motor wires. They are beautifully packaged in a heavy duty box and include prop adapters for both T-Motor props and conventional 4mm bolt on props. See the chart below for motor and battery suggestions! You will absolutely love T-Motors...we do! We have used all sorts of cheap motor over the years, but never again. Once you use T-Motors I think you will agree and never want to use anything less. The overall quality and craftsmanship are amazing, and they are one of the most efficient available.

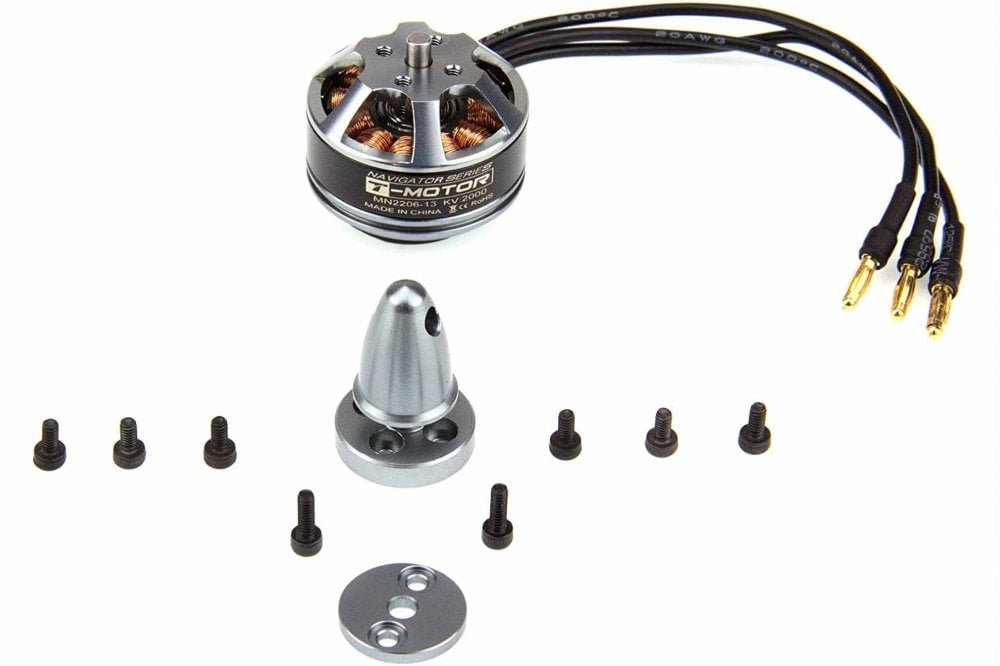

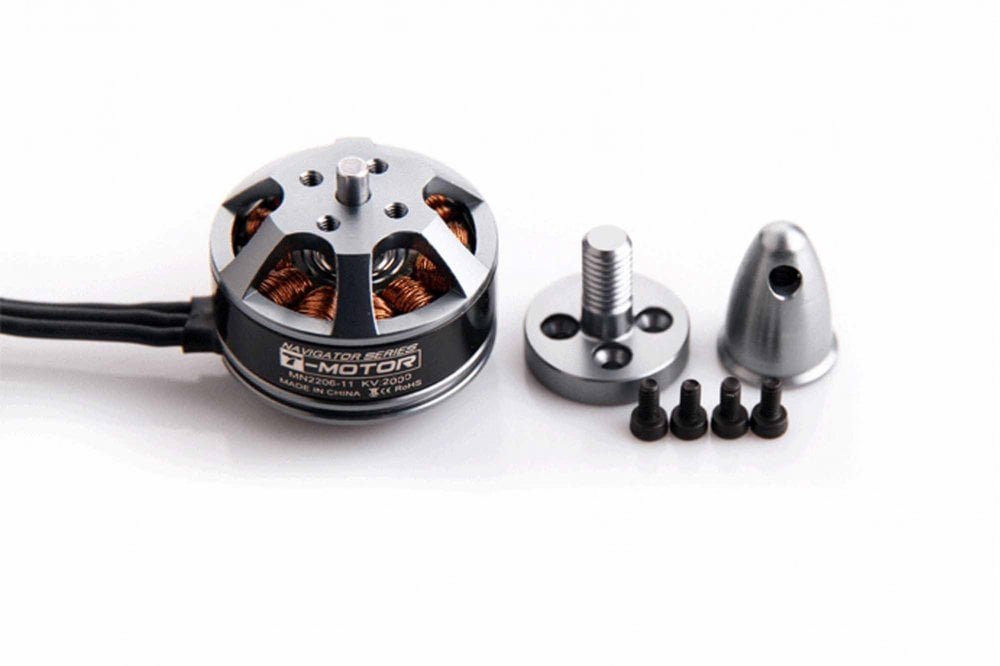

Included 4mm prop adapter can directly support installation of M4 screw propeller

Included carbon fiber prop cover can match with CF prop. It can perfectly support 5, 6, 7 inch CF prop.

Specification

KV 2000

Configuration 12N14P

Stator Diameter 22mm

Stator Length 6mm

Shaft Diameter 3mm

Motor Dimensions (Dia.*Len) Φ27×18.5mm

Weight (g) 30g

ldle current(10)@10v(A) 0.A

No.of Cells(Lipo) 2-3S

Max Continuous current(A)180S 18A

Max Continuous Power(W)180S 180W

Max. efficiency current (2-5A)>80%

internal resistance 82mΩ
